Images are representations only.

MBGAS-3000CH

Series: MBGAS-3000CH Process Gas Analyzer Brand: ABB Group

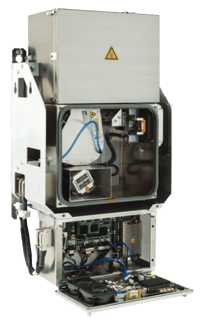

ABB FT-IR Process Gas Analyzer

Price
$208.00 CAD
Stock
50+ In Stock
Request Information

Specifications

Brand

Spectral Range

  • 800 to 5,000 cmˉ¹

Resolution

  • Apodized: 1 to 64 cmˉ¹
  • Unapodized: < 0.7 cmˉ¹

Detector

  • DTGS

Controller

  • PC Controlled (Option: Rack-Mounted Controller)

Signal Sampling

  • 24-bit ADC

Gas Cell

  • 1-liter gas cell, path length 3.20 m or 0.36 m, resistant mirrors, aluminum body, heatable up to 200° C, 1/4-inch Swagelok tubing connector

Beamsplitter Material

  • ZnSe (Non-Hygroscopic)

Communication

  • Ethernet Port (10/100 Mbps)

Enclosure

  • IP50 modular arrangement with gas cell module, interferometer module and Electronic box module

Mounting

  • Rack Mount or tray Mount
  • Brackets for Wall Mount

Power Supply

  • 100-240 Vac ± 10 %, 50/60 Hz ± 3 Hz

Power Consumption

  • 550 W at Power-Up and 200 W during Operation

Operating Temperature

  • 5° to 40° C

Humidity

  • 0 % to 95 % RH, Non-Condensing

Certifications & Approvals

  • CE
  • TÜV

Stability

  • Temperature: < 1 % /°C
  • < 0.09 % transmission between consecutive 1-mn measurements @ 4 cm

Repeatability

  • Frequency: < 0.001 cmˉ¹  @ 1918 cmˉ¹

Accuracy

  • Frequency: < 0.06 cmˉ¹ @ 1918 cmˉ¹

Dimensions

  • 46 cm (W) x 85 cm (H) x 27 cm (D) excluding gas cell insulated enclosure (In wall mount orientation)

Weight

  • 35 kg

Documentation

Brochure
