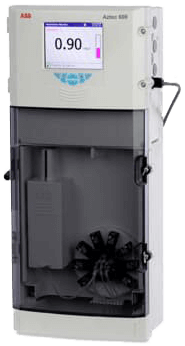

Images are representations only.

AW63151001020

Series: Aztec AW631 Aluminium Analyzer Brand: ABB Group
Price
$1,264.00 CAD
Stock
50+ In Stock
Request Information

  • Range - 0 to 1.5 ppm
  • Number of Streams - Measuring 1 Stream
  • Communication - None
  • Enclosure - Standard
  • Power Supply - 18-36 Vdc
  • Manual - French
  • Certification - None

Specifications

Brand

Measurement Range

  • 0 to 1.5 ppm Al (0 to 1.5 mg/L)

Measurement Frequency

  • 1 to 6 measurements per hour

Accuracy / Maximum Measured Error

  • < ± 5 % of Reading or ± 0.005 ppm (Whichever is the greater)

Repeatability

  • ± 5 % of Reading or ± 0.005 ppm, whichever is greater

Resolution

  • 0.001 ppm or 1 ppb

Calibration

  • 2-Point, Automatic Calibration

Operating Temperature

  • 5° to 45° C (41° to 113° F)

Sample Temperature

  • 1° to 40° C (32° to 104° F)

Sample Pressure

  • 5 psi Max.

Sample Flow

  • Continuous, 200 to 500 mL/min

Humidity

  • Up to 95 % Relative Humidity, Non-Condensing

Display

  • 76800 Pixel Display
  • Color, TFT, LCD with built-in backlight and brightness Adjustment

Environmental Protection

  • IP 31

Process Conenction

  • Sample Connections - Inlet: 6 mm O.D. push-fit x 1/4” BSP elbow
  • Sample Connection - Outlet: 10 mm O.D. push-fit x 3/8” BSP elbow

Material of Construction

  • Door: Acrylic
  • Lower Tray: 20 % Glass-loaded Polypropylene
  • Main Enclosure: Noryl
  • Electronics Enclosure: 10 % Glass-loaded Polycarbonate

Power Supply

  • 18-36 Vdc (Optional)
  • 100-240 Vac max, 50/60 Hz ± 10 % (90-264 Vac 45/65 Hz)

Power Consumption

  • 100 W Max. - DC
  • 75 W Max. - AC

Certifications & Approvals

  • cULus
  • CE Mark
  • EMC

Communication

  • PROFIBUS DP V1.0
