AW63553101050

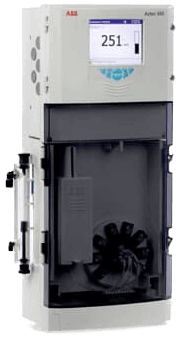

Series: Aztec AW635 High Range Manganese Analyzer Brand: ABB Group
Price
$229.00 CAD
Stock
25+ In Stock
Request Information

  • Range - 0.02 to 10 ppm Mn
  • Number of Streams - Measuring 3 Streams
  • Communication - Profibus DP V1.0
  • Enclosure - Standard
  • Power Supply - 18 to 36 Vdc
  • Manual - Spanish
  • Certification - None

Specifications

Brand

Measurement Range

  • 0.02 to 10 ppm Mn (0.02 to 10 mg/L)

Accuracy / Maximum Measured Error

  • ± 7 % of Reading or ± 0.005 ppm for 5 to 10 ppm, whichever is greater
  • ± 5 % of Reading or ± 0.005 ppm for 0 to 5 ppm, whichever is greater

Repeatability

  • ± 5 % of Reading or ± 0.005 ppm, whichever is greater

Resolution

  • 0.001 ppm or 1 ppb

Calibration

  • 2-Point, Automatic Calibration

Operating Temperature

  • 5° to 45° C (41° to 113° F)

Sample Temperature

  • 1° to 40° C (32° to 104° F)

Sample Pressure

  • 5 psi Max.

Flow Rate

  • Sample: Continuous 200 to 500 mL/min

Humidity

  • Up to 95 % RH, Non-Condensing

Display

  • Color, TFT, LCD with built-in backlight and brightness Adjustment

Environmental Protection

  • IP 31

Materials of Construction

  • Door: Acrylic
  • Lower Tray: 20 % Glass-loaded Polypropylene
  • Main Enclosure: Noryl
  • Electronics Enclosure: 10 % Glass-loaded Polycarbonate

Power Supply

  • 18-36 Vdc optional
  • 100-240 Vac Max. 50/60 Hz ± 10 %

Power Consumption

  • 100 W Max. - DC
  • 75 W Max. - AC

Certifications & Approvals

  • EMC
  • CE
  • cULus Listed
  • LV Directives

Communication

  • PROFIBUS DP V1.0

Documentation

Brochure

Catalog

Certificate

Manual
