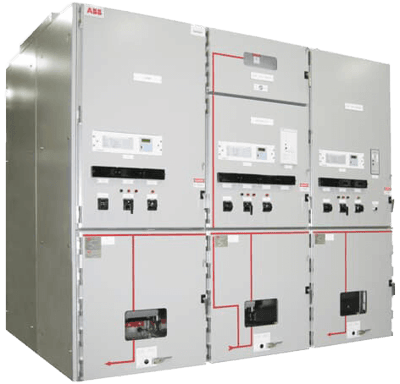

SafeGear® & SafeGear® HD Air-Insulated Switchgear

Brand: ABB Group

SafeGear® and SafeGear HD® arc-resistant switchgear meets or exceeds the IEEE C37.20.2 standard for metal-clad switchgear and the IEEE C37.20.7 standard for arc-resistant testing guidelines, and has been seismically tested to IBC Region D.

SafeGear is also qualified to Ip1.5.

SafeGear, rated up to 50kA, and SafeGear HD, rated for 63kA, not only meet the conventional standards for metal-clad switchgear, but go beyond the metal-clad standards to provide the added protection of arc-resistant construction.

The arc-resistant design reduces life-cycle costs through equipment protection, and improves safety for operations and maintenance personnel.
Features
  • SafeGear, rated up to 50 kA, and SafeGear HD, rated for 63 kA applications
  • Meet/exceed IEEE C37.20.2 requirements for metal-clad switchgear and IEEE C37.20.7 arc-resistant testing guidelines, and have been seismically tested to IBC Region D.; SafeGear is also qualified to Ip1.5
  • Galvanized construction, hem bending, bolted frame, modular design, instrument compartment, breaker compartment, PT/CPT/Fuse compartment, bus and cable compartment
  • Additional safety features: closed door racking, snuffer contact design – PTs/CPTs
  • SafeGear and SafeGear HD utilize the ADVAC spring charge mechanism breaker; the AMVAC magnetically actuated breaker is available for SafeGear
