Flow Measuring Orifice

Brand: Danfoss

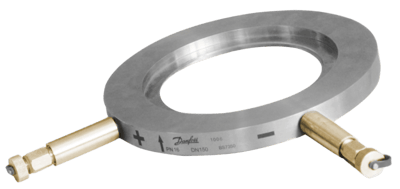

Danfoss flow measuring orifices are used to precisely determine the flow in water based heating, cooling or potable water systems.

This determination is done by measuring the differential pressure across the fixed orifice, which has a well known Kv value.

Differential pressure is measured with PFM 5000 or other measuring device that can convert differential pressure to flow.

Models matching criteria: 14
  • Flow Rate / Size - 4,230 m³/hour / DN 500
100+ In Stock
$453.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 798 m³/hour / DN 200
100+ In Stock
$878.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 1,880 m³/hour / DN 300
100+ In Stock
$1,383.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 525 m³/hour / DN 150
50+ In Stock
$1,546.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 119 m³/hour / DN 80
50+ In Stock
$2,054.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 2,650 m³/hour / DN 400
50+ In Stock
$727.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 6,240 m³/hour / DN 600
50+ In Stock
$1,713.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 103 m³/hour / DN 65
50+ In Stock
$1,662.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 2,180 m³/hour / DN 350
50+ In Stock
$2,307.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 69 m³/hour / DN 50
25+ In Stock
$2,459.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 1,219 m³/hour / DN 250
22 In Stock
$272.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 233 m³/hour / DN 100
17 In Stock
$851.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 3,430 m³/hour / DN 450
11 In Stock
$349.00 CAD
Does not ship to OH, United States
  • Flow Rate / Size - 334 m³/hour / DN 125
4 In Stock
$2,124.00 CAD
Does not ship to OH, United States

Specifications

Brand

Flange Size - 10” (DN 250)

  • 10” (DN 250) - PN 25

Flange Size - 12” (DN 300)

  • 12” (DN 300) - PN 25

Flange Size - 14” (DN 350)

  • 14” (DN 350) - PN 25

Flange Size - 16” (DN 400)

  • 16” (DN 400) - PN 25

Flange Size - 18” (DN 450)

  • 18” (DN 450) - PN 25

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - PN 25

Flange Size - 2” (DN 50)

  • 2” (DN 50) - PN 25

Flange Size - 20” (DN 500)

  • 20” (DN 500) - PN 25

Flange Size - 24” (DN 600)

  • 24” (DN 600) - PN 25

Flange Size - 3” (DN 80)

  • 3” (DN 80) - PN 25

Flange Size - 4” (DN 100)

  • 4” (DN 100) - PN 25

Flange Size - 5” (DN 125)

  • 5” (DN 125) - PN 25

Flange Size - 6” (DN 150)

  • 6” (DN 150) - PN 25

Flange Size - 8” (DN 200)

  • 8” (DN 200) - PN 25

Flow Rate

  • 40.61 to 3,672.7 scfm (69 to 6,240 m³/hour)

Materials of Construction

  • Dezinfication Free Brass - Measuring Points

Nominal Pressure

  • psi: 362.6 (kPa: 2,500, bar: 25)

Operating Temperature

  • -10° to 130° C (14° to 266° F)

Orifice Material

  • Stainless Steel - Fixed Orifice

  • Water based heating, cooling or potable water systems
