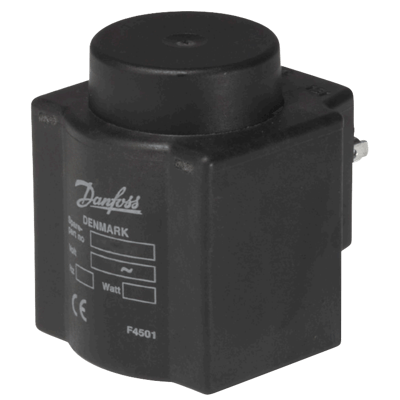

BQ Solenoid Coil

Brand: Danfoss

Danfoss solenoid valves and coils are usually ordered separately to allow maximum flexibility, enabling you to select a valve and coil combination to best suit your needs.

The Danfoss coil program consists of both the easy-to-handle Clip-On system and traditional coils with threaded fastener.

Danfoss offer a wide range of application specific coils for e.g. steam or hazardous areas. The coils are available with approvals such as EN60730-1, EEx/ATEX and UL.

Models matching criteria: 3
  • Model - BQ240CS
100+ In Stock
$2,452.00 CAD
Does not ship to OH, United States
  • Model - BQ024CS
50+ In Stock
$2,278.00 CAD
Does not ship to OH, United States
  • Model - BQ120BS
50+ In Stock
$404.00 CAD
Does not ship to OH, United States

Specifications

Brand

Ambient Temperature Range

  • -40° to 40° C (-40° to 104° F)

Applications

  • Steam

Approvals & Certifications

  • EN 60730-1
  • EN 60730-2-8
  • ATEX
  • CE
  • cURus
  • IEC 85, IEC 529
  • LVD - Low Voltage Directive (LVD) 2014/35/EU
  • RoHS Directive 2011/65/EU
  • UL
  • VDE 0580

Consumption

  • 16 to 19 VA - Power Consumption
  • 9 to 13.5 W - Power Consumption

Electrical Connectors

  • Cable Plug Connection
  • DIN 43650-A
  • Protective Cap
  • Spade Connector

Environmental Protection

  • IP65
  • NEMA 4

Frequency

  • 50/60 Hz

Length

  • With Cable Plug: 3.3” (85 mm)
  • With Protective Cap: 3” (77 mm)
  • Without Cable Plug: 2.4” (62 mm)

Media

  • Steam

Process Temperature

  • 0° to 185° C (32° to 365° F) - Max.

Supply Voltage

  • 110-240 Vac at 50/60 Hz
  • 24 Vac at 50/60 Hz

Winding Insulation

  • Class H - According to IEC 85
