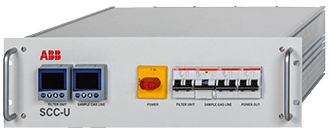

SCC-U Utility Unit

Part Number: SCC-U Brand: ABB Group

ABB Utility Uint

Price
$1,698.00 CAD
Stock
50+ In Stock

The SCC-U Utility Unit is suitable for power supply and control of all system components of compact and cost effective extractive gas analyzer systems.

The unit has been designed to support the Easy System building block concept (link to systems page) for Plug & Play connectivity for quick and easy start-up and commissioning.
Features
  • Power distribution for gas analyzers, gas sampling devices, heated sample probe filter units, heated sample gas lines
  • Temperature controllers for heated sample gas line and heated sample probe filter (optional)
  • Solenoid valves for control of automatic calibration with test gases (optional)
  • Compact design
  • High flexibility
  • Suitable for wide variety of “easy” applications
  • Plug & Play system integration - Easy start-up and commissioning
  • Simple configuration and order handling

Specifications

Environmental Protection

  • IP20

Operating Temperature

  • 10° to 40° C

Storage / Transport Temperature

  • -25° to 60° C

Humidity

  • ≤ 75 % Relative Humidity Annual Average

Mounting

  • Rack Mounting on Mounting Rails

Housing Material

  • Aluminum

Color

  • Front Panel light gray (RAL 7035)

Power Supply

  • 230 Vac ± 10 %, 50 Hz or 115 Vac ± 10 %, 60 Hz

Power Consumption

  • 230 Vac 50 Hz: Max. 3,500 VA, Max. 16 A
  • 115 Vac 60 Hz: Max. 1,750 VA, Max. 16 A
