MBOEM-EMIS Large Area Diffuse Reflectance

Part Number: MBOEM-EMIS Brand: ABB Group

ABB Large Area Diffuse Reflectance

Price
$1,425.00 CAD
Stock
50+ In Stock

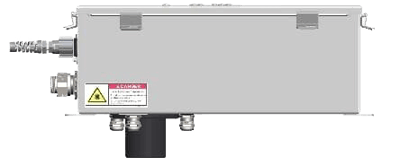

A configured analyzer based on the double-pivot interferometer has been packaged for a very specific purpose: process diffuse reflectance without the use of a fibre optic interface.

This analyzer is a non-contact system, and is designed to be field mounted in close proximity to the sample.

The large area measurement addresses the issue of the non-homogeneity of samples, which is quite regularly associated with solid samples.

The MBOEM-EMIS is a precision FTIR spectrometer instrument that is designed to measure the spectral content of incoming light.

Its compact size and rugged packaging allow for installation closer to raw material flow.
Features
  • Three lasers pointers for ease of alignment
  • A large lid for accessing components
  • A choice of input optics (field swappable)

Specifications

Resolution

  • 1 to 32 cm-1

Spectral Range

  • 3,500 to ,500 cm-1

Detector

  • InGaAs 2.6 µm

Accuracy

  • ± 0.06 cm-1 or better at ~7,300 cm-1 for a 1 cm-1 setting

Power Supply

  • 100-240 Vac

Power Consumption

  • 50 W

Communication

  • CONEC 17-300020 Type
  • Proprietary Protocol over TCP/IP
  • Compliant to 100Base-FX MM

Operating Temperature

  • 10° to 30° C

Resistance

  • To vibration: up to 0.1 g

  • Material on conveyer belts
  • Fabric / Tow
  • Pellets
  • Fine particles
  • Large and irregular samples
show more
