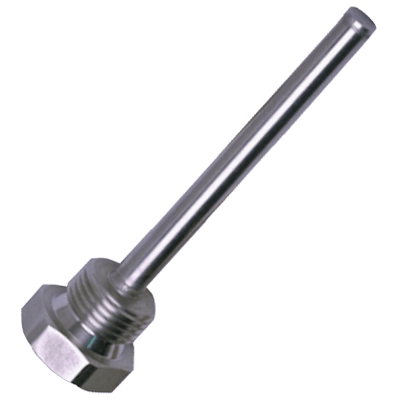

MBT 120 Temperature Sensor Pocket

Brand: Danfoss

MBT 120 Sensor Pocket:
  • Process connection: G 1/2" A, 1/2"-14 NPT, G 3/4" A
  • Maximum tightening torque: 50 Nm, 100 Nm
  • Permissible media velocity: air (25 m/s), water (3 m/s)
  • Insertion Length: 1.96" to 9.84" (50 to 250 mm)

Specifications

Brand

BSP Connection

  • G 1/2” A Male
  • G 1/4” A Male
  • G 3/4” A Male
  • G 3/8” A Male

Insertion 'U' Length

  • 1.96” to 9.84” (50 to 250 mm)

Materials of Construction

  • Acid-Proof 316L Stainless Steel - Protection Tube

Media

  • Air (Permissible Media Velocity 25 m/sec)
  • Water (Permissible Media Velocity 3 m/sec)

Metric Connection

  • M18 x 1.5

NPT Connection

  • 1/2” NPT Male

Temperature Range

  • -50° to 200° C (-58° to 392° F)

Torque

  • 50 Nm (442.5 In/Lbs) - Max.
  • 885 In/Lbs (100 Nm) - Max.
