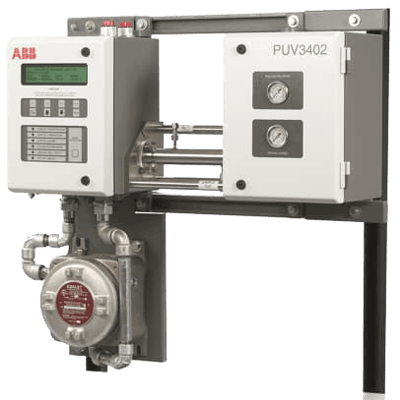

PUV3402 and PUV3402 LED Ultraviolet Photometer

Brand: ABB Group

The PUV3402 multiwave process photometer provides continuous measurements of vapor or liquid samples, in simple or complex process streams, for process control, product quality assurance, safety, catalyst protection and area monitoring.

The filter wheel of the photometer utilizes up to eight wavelengths, increasing the number of measurement solutions.

Because it uses multiple wavelengths, the photometer can compensate for many types of interference and handle multiple component applications.

The PUV3402 process photometers are designed for the UV (Ultraviolet) and VIS (visible) spectra regions.
Features
  • Continuous measurements
  • Multiple component samples
  • Measure vapor or liquid samples
  • Operates in the UV and VIS
  • Multiple interference compensation capability
  • VistaNET and VistaSTAR Connectivity

Models matching criteria: 2
ABB Ultraviolet Photometer
50+ In Stock
$152.00 CAD
Does not ship to OH, United States
ABB Multiwave Process Photometer
50+ In Stock
$2,423.00 CAD
Does not ship to OH, United States

Specifications

Precision

  • ± 1 % of Full Scale

Noise

  • ± 1 % of Full Scale at 0.02 absorption units

Linearity

  • Standard ± 2 % of Full Scale

Zero Drift

  • ± 1.0 % of Full Scale per Day for IR

Operating Temperature

  • 32° to 113° F (0° to 45° C)

Sample Pressure

  • 0 to 500 psig (0 to 34 bar)

Power Requirement

  • 100/115/220/230 Vac, 45 to 66 Hz

Power Consumption

  • 150 W, Max.
  • 600 W with Electric Heat

Certifications & Approvals

  • NEC Class 1, Div. 2, Group B, C, D, NEC Class 1, Group B, C, D, Div. 1, with ”Y”
  • Purge CENELEC Zone 1, IIB + H₂

Environmental Protection

  • IP52

Humidity

  • 95 % Relative Humidity, Non-Condensing

Mounting

  • Wall Mount

EMI / RFI

  • Conform to Class A industrial environment

Inlet / Outlet

  • Sample: 1/4” Gyrolok Standard (Optional Swagelok)
  • Purge: 1/4” Female NPT Gyrolok

Material of Construction

  • 316 Stainless Steel, monel, hastelloy C

Dimensions

  • 254 x 266.7 x 342.9 x 681.0 to 1665.0 mm L (10.0” x 10.5” x 13.5” x 26.8” to 65.5” L)

Weight

  • 36.28 kg (80 lbs)

  • Visible
    • Color Measurements (ASTM, APHA, Saybolt Color Units)
    • With the Spectral Regions: 400 to 800 nm
  • Ultraviolet
    • %T @Multiple Wavelengths in Glycol Process
    • Chlorine in Phosgene
    • With the Spectral Regions: 200 to 400 nm
