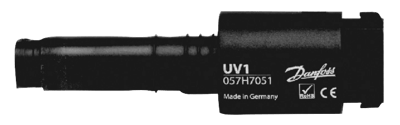

UV Ultraviolet Flame Sensor
Brand: DanfossDanfoss UV sensors are used to detect the flame in blue flame oil burners. They are intended for use together with Danfoss controls in the OBC 80 and BHO 70 series.
The UV sensors meet the requirements of the EN230:2005 standard and also meets the requirements of the RoHS and WEEE Directives.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 5
- Model - 500 mm Cable
50+ In Stock
$110.00 CAD
Does not ship to OH, United States
- Model - 400 mm Cable
50+ In Stock
$2,448.00 CAD
Does not ship to OH, United States
- Model - Flange
25+ In Stock
$515.00 CAD
Does not ship to OH, United States
- Model - 300 mm Cable
25+ In Stock
$711.00 CAD
Does not ship to OH, United States
- Model - UV1 - Normal Sensitivity
19 In Stock
$1,000.00 CAD
Does not ship to OH, United States
Specifications
Brand
Ambient Temperature Range
- -20° to 70° C (-4° to 158° F), Short Time Operation up to 75° C (167° F) - Operation
- -30° to 70° C (-22° to 158° F) - Transport
Approvals & Certifications
- EN 230: 2005
- CE
- RoHS
- WEEE
Cable Length
- 0.98 to 1.64 feet (0.3 to 0.5 Meter)
Current
- Signal for No Light: 5 µA, Max.
Electrical Connectors
- Wire (Brown: 230 V Mains, Blue: Neutral, Black: Signal)
Environmental Protection
- IP40
Mounting
- Flange Mount
- Pipe
Output
- Maximum
- Recommended Min. Signal Output: 65 µA
Power Requirement
- 230 V, 50/60 Hz, 0.3 VA
Sensitivity
- Maximum
