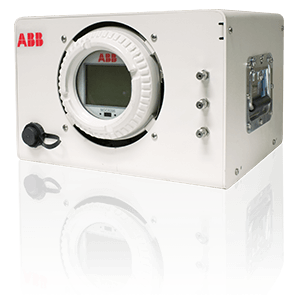

Portable NGC8206/NGC 8209 Natural Gas Chromatograph

Brand: ABB Group
Request Information
Favorite

When gas volumes are too low to justify a continuous on-line solution.

When the overall cost and maintenance of gas samplers becomes too high.

When your business evolves to require real-time information and avoid the accounting inefficiencies inherent with waiting for time-consuming lab analysis.

These situations and many others demand the on-site analysis capabilities of the portable NGC8206.

The portable NGC8206 provides precise, reliable, on-site measurement of natural gas samples in a compact, affordable package that is easy to operate and maintain.

When the spot sample needs to be run, the unit is already powered up and stable, eliminating the wait at the meter site.

The NGC8206 and NGC8209 measure C6+ or C9+ (back flushed) peak.

Users may input the results of a comprehensive lab analysis that reflects the split or ratio of C6 through C10 or C9 through C12 components.

This ratio can be used in subsequent analyses and energy calculations.
Features
  • Portable GC interface allows user analysis customization
  • Modular software – application based plug in software modules
  • Manifold module (internal tubing now replaced by manifold)
  • Analysis sections contain stream selection solenoids, temperature and pressure regulation, 32 bit digital detector electronics, replaceable column / valve modules and a low
  • power 32 bit digital controller, using Windows CE® (internal to GC unit)
  • Microsoft® Windows® based man-machine interface software (PCCU)
  • USB MMI port connectivity
  • Ethernet connectivity
  • Lithium battery-backed RAM
  • Two remote serial digital communications ports; one local port
  • Comprehensive diagnostics and wizards available to users
  • Audit-quality historical data; date and time stamped
  • Operational fault/warn alarms available
  • Detectors - constant temperature, glass encapsulated thermistor beads for rugged service and long life; will not burn out on loss of carrier
  • 10 port valves have no moving metal parts in each analysis unit
  • Low utility usage - low-power, low-carrier, no instrument air required
  • On demand or scheduled automatic calibration and diagnostics

Displaying prices & availability for Ohio, United States in CAD. Change location.

Models matching criteria: 2
Portable NGC8209
ABB Measuring a C9+ (Back Flushed) Peak
50+ In Stock
$1,118.00 CAD
Does not ship to OH, United States
Portable NGC8206
ABB Measuring a C6+ (Back Flushed) Peak
9 In Stock
$1,799.00 CAD
Does not ship to OH, United States

Specifications

Brand

Weatherpoof Construction

  • No Classification

Media

  • Helium

Analysis Time

  • Approximately 5 minutes for Portable NGC8206, 6 minutes for Portable NGC8209, cycles may be scheduled by user

Repeatability

  • Portable NGC8206: ± 0.25 BTU @ 1,000 BTU (± 0.025 %) over Temperature Range
  • Portable NGC8206: ± 0.125 BTU @ 1,000 BTU (± 0.0125 %) @ ambient
  • Portable NGC8209: ± 0.5 BTU @ 1,000 BTU (± 0.05 %) over Temperature Range
  • Portable NGC8209: ± 0.25 BTU @ 1,000 BTU (± 0.025 %) @ ambient

Storage Temperature

  • -22° to 140° F (-30° to 60° C)

Temperature Range

  • Normal: 0° to 130° F (-18° to 55° C)

Humidity

  • 95 % Relative Humidity Non-Condensing

Supply Voltage

  • 110 Vac, 60 Hz
  • Portable NGC8206: 12 Vdc (10.5-15 Vdc)
  • 250 Vac, 50 Hz, 24 Vdc (16-28 Vdc)

Certifications & Approvals

  • General purpose

Power Consumption

  • Portable NGC8206: Start up: 45 W at 15 Vdc, less than 3 A @ 0° F (-18° C)
  • Poratable NGC8206: Nominal: 7 W at 15 Vdc, 650 mA @ 0° F (-18° C)
  • Portable NGC8209: Start up: 90 W at 15 Vdc, less than 6 A @ 0° F (-18° C)
  • Poratable NGC8209: Nominal: 14 W at 15 Vdc, 1300 mA @ 0° F (-18° C)

Communication

  • Optional USB Hub (Host and Client) and Ethernet Ports
  • One USB MMI (RS-232 or USB)
  • Two Serial Digital Ports, Software selectable for RS-232, RS-485, or RS-422

Protocols

  • Totalflow / TCP
  • Modbus / TCP Server
  • Totalflow Remote / Local MMI
  • Modbus / TCP Client
  • Modbus ASCII or RTU (Modicon, WordSwap, or Danalyzer)
  • DSFG (Portable NGC8206 only)

Dimensions

  • Portable NGC8209: 19.05 cm x 52.07 cm x 39.37 cm
  • Portable NGC8209: 7.5” high x 20.5” wide x 15.5” deep
  • Portable NGC8206: 24.13 cm x 36.32 cm x 40.64 cm
  • Portable NGC8206: 9.5” high x 14.3” wide x 16” deep

Weight

  • Portable NGC8206: Approximately 38 lb (17 kg)
  • Portable NGC8209: Approximately 34 lb (15 kg)

Documentation
