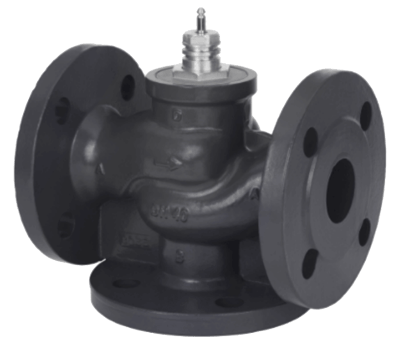

VL 3 3-Way Seated Valve
Brand: DanfossVL 3 valve provide a quality, cost effective solution for most water and chilled applications.
Features- Bubble tight design DN 15 to 100
- Snap mechanical connection together with AMV(E) 335, AMV(E) 435
- Dedicated 2- and 3-port valve
- Suitable for diverting applications (3-port)
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 14
100+ In Stock
$160.00 CAD
Does not ship to OH, United States
100+ In Stock
$1,310.00 CAD
Does not ship to OH, United States
100+ In Stock
$1,747.00 CAD
Does not ship to OH, United States
100+ In Stock
$1,297.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,429.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,392.00 CAD
Does not ship to OH, United States
50+ In Stock
$773.00 CAD
Does not ship to OH, United States
50+ In Stock
$174.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,485.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,502.00 CAD
Does not ship to OH, United States
50+ In Stock
$1,957.00 CAD
Does not ship to OH, United States
25+ In Stock
$2,382.00 CAD
Does not ship to OH, United States
22 In Stock
$1,516.00 CAD
Does not ship to OH, United States
2 In Stock
$1,741.00 CAD
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- PED 97/23/EC
Cone Material
- Red Bronze CuSn5Zn5Pb5 (Rg 5) at DN 100
- Valve Cone: Brass
Connection Style
- Flange PN 6 According to EN 1092-2
Control Functions Characteristics
- Lin: Port B-AB
- Log: Port A-AB
Enclosure, Body Material
- Valve Body: Grey Cast Iron EN-GJL-250 (GG-25)
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - PN 6
Flange Size - 1-1/4” (DN 32)
- 1-1/4” (DN 32) - PN 6
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 6
Flange Size - 1/2” (DN 15)
- 1/2” (DN 15) - PN 6
Flange Size - 2-1/2” (DN 65)
- 2-1/2” (DN 65) - PN 6
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 6
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 6
Flange Size - 3/4” (DN 20)
- 3/4” (DN 20) - PN 6
Flange Size - 4” (DN 100)
- 4” (DN 100) - PN 6
Flow Rate
- 0.63 to 145 m³/hour (Kvs)
Maximum System Pressure
- psi: 14.5 (kPa: 100, bar: 1) - Max.
- psi: 58.02 (kPa: 400, bar: 4) - Max.
Media
- Circulation Water, Glycolic Water up to 50 %
Nominal Pressure
- psi: 87 (kPa: 600, bar: 6)
Process Temperature
- -10° to 120° C (14° to 248° F)
Ratio
- Control Range: 100: 1 for 6.3 to 145 m³/hour (Kvs)
- Control Range: 30:1 for 0.63 m³/hour (Kvs)
- Control Range: 50:1 for 1 to 4 m³/hour (Kvs)
Seat / Seal Material
- Stuffing Box Sealing: EPDM
Stem Material
- Valve Stem: Stainless Steel
Temperature Range
- Maximum
- Water and chilled applications
