Endura AZ20 Combustion Gas Oxygen Analyzer

Brand: ABB Group

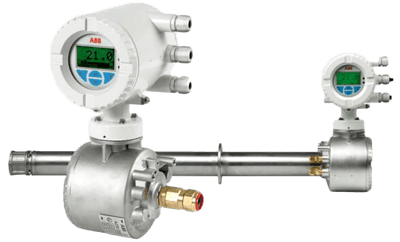

The Endura AZ20 is a high-quality combustion gas analyzer providing accurate and rapid oxygen reading for combustion control optimization and emissions monitoring.

The sensor, based on a zirconium oxide cell, is mounted at the tip of the probe that is inserted in the flue duct.

The resulting direct, in situ measurement provides accurate and rapid oxygen reading for combustion control optimization and emissions monitoring.
Features
  • Advanced design and precision manufacturing
  • Unique integrated auto-calibration system
  • Probe lengths up to 4.0 m (13.1 ft) and industry-standard
    • Flange configurations
    • Easy cell release
    • Advanced transmitters

Specifications

Brand

Measurement Range

  • Range: 0.01 to 100 % O₂

Response Time

  • Test Gas: Initial dead time 3 s, T90 < 10 s

Accuracy

  • System: < ± 0.75 % of Reading or 0.05 % O₂, whichever is greater

Drift

  • < ± 1 % Max. % O₂ Range value per month (Without calibration)
  • < ± 0.2 % Typical

Operating Temperature

  • Transmitter: -20° to 55° C (-4° to 131° F)
  • Probe: -20° to 70° C (-4° to 158° F)

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Process Temperature

  • All probe: -20° to 800° C (-4° to 1,472° F)

Humidity

  • Up to 95 % Relative Humidity, Non-Condensing

Environmental Protection

  • IP66 (NEMA 4X)

Power Supply

  • 100-240 Vac ± 10 % (90 V min. to 264 V Max.) 50/60 Hz
  • Electronics: < 10 W
  • Probe Heater: < 100 W

Certifications & Approvals

  • Emissions immunity: Conforms to EN 61326-1
  • General safety: Conforms to EN 61010-1
  • Performance: Conforms to EN 15267-3
  • SIL 2: Conforms to EN 61508
  • Metrology (Russia)
  • TÜV (QAL 1)
  • MCERTS (QAL 1)
  • EAC (Russia)
  • cFMus
  • CE Marked

Insertion Length

  • Probe: 0.5 to 4.0 m (1.7 to 13.1 ft)

Process Connection

  • ANSI B16.5 150 lb
  • DIN 2501 Part 1
  • NPT Connection
  • JIS B2238 5K

Probe Body Material

  • 316L Stainless Steel

Mounting

  • Horizontal to Vertically down

Calibration

  • Manual, semi-Automatic or automatic

Material of Construction

  • Remote transmitter: Aluminum
  • Remote terminal housing: 316L Stainless Steel
  • Integral transmitter: Aluminium transmitter housing / Stainless Steel probe and terminal housing

Communication

  • HART

Documentation
