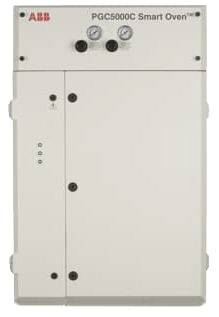

PGC5000C Smart Oven Process Gas Chromatograph

Part Number: PGC5000C Brand: ABB Group

ABB Smart Oven PGC5000 Series Gas Chromatograph

Price
$2,245.00 CAD
Stock
25+ In Stock

ABB process gas chromatographs perform real-time analysis of the chemical composition of a process sample or stream -- crucial for on-spec processes and productivity.

PGC5000C Smart Ovens target complex applications requiring multiple detectors for maximum application densification.

The ABB PGC5000 Series process gas chromatograph is based on over 50 years of innovation in on-line process gas chromatographs. It simplifies gas chromatography and increases reliability. It provides everything you need to know about your GC – at your fingertips.

The PGC5000 Series has been designed for distributed control across multiple analytical Smart OvensTM for limitless application approaches.

There are two ovens, PGC5000B and PGC5000C, suitably equipped for the type of application engineered.

PGC5000C Smart OvenTM technology supports applications that require dual detectors with up to six analytical valves.

Advanced pressure, temperature and stream control software executes analytical methods required for analyses.

A single PGC5000A Controller can support up to two PGC5000C Smart OvensTM increasing applications flexibility and offering maximum application density.
Features
  • Appropriately sized (28% larger) and designed for maximum application densification
  • Perfect for multiplexing multiple streams’ analyses in a single analytical oven
  • Designed for complex application measurements
  • Multiple detector configuration – sTCD, mTCD, FID and FPD capability

Specifications

Environmental Protection

  • IP54 (NEMA 3 Equivalnet)

Ambient Temperature

  • Oven Temperature: 30° to 180° C (Settings and display in °C only)
  • 0° to 50° C (32° to 122° F)

Humidity

  • 95 % Relative Humidity, Non-Condensing

Mounting

  • Wall: 33 mm (1.3 in.) from wall with brackets

EMI / RFI

  • Conform to ClassA industrial environment

Certifications & Approvals

  • ATEX / IEC / CN / KO: Zone 1: CE 0344, II2G, Ex de py IIB+H₂ T4 - T2, Zone 2: CE, II3G Ex de nA nL IIB+H₂ T4 - T2 Ex de px IIB+H₂ T4 - T2 (Optional), with X-purge Power interlock
  • CSA / NRTL: Class I, Div. 1, gas groups B, C, D with Type Y-purge, Class I, Div. 2, gas groups B, C, D Temperature code T4 - T2

Power Requirement

  • 100-240 Vac, 50/60 Hz

Power Consumption

  • 900 W steady-state Operation
  • 1,600 W Startup
  • Typical, varies with installed options

Tube Connection

  • Supply: 3/8”, minimum

Pressure

  • Inlet: 1034 kPa (150 psig) Max.
  • Inlet: Set Point 69 kPa (10 psig) minimum
  • Supply: 551.6 kPa (80 psig)

Flow Rate

  • Steady State purge: 127 to 147 L/min (4.5 to 5.2 ft³/min) at 20° C, Y-purge Types

Material of Construction

  • Tube: 316 Stainless Steel
  • Oven liner: Stainless Steel

Resolution

  • Setpoint: 1° C

Stability

  • Ambient Range: ± 1.0° C
  • Steady ambient: ± 0.1° C

Accuracy

  • 2 % (0-100 psig)

Repeatability

  • ± 0.05 psig

Media

  • H₂, He, N₂, Air, Ar
  • No Liquids, corrosives, combustibles, O₂
