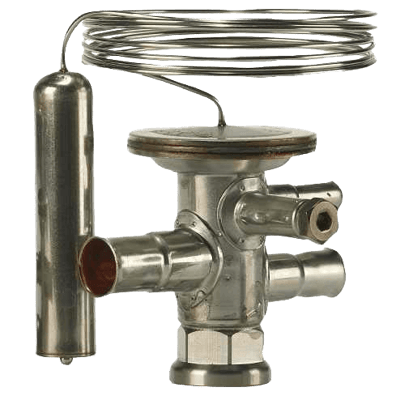

TCAE Element for Thermostatic Expansion Valve

Brand: Danfoss

The TCAE is made of stainless steel and therefore is especially well-suited to refrigeration systems where aggressive environments exist.

The TCAE has been developed and designed especially for soldering into hermetic refrigeration systems.

The valves are offered in rated capacities up to 4.8 TR R407C (TU) / 7.5 TR R407C (TC).
Features
  • Interchangeable orifice assembly - For easier stocking, capacity matching and service
  • Bi-Metal connections - Fast and easy soldering without the need for a wet cloth
  • Refrigerants R22, R134a, R404A, R407A, R407C, R407F, R507, R410A (for other refrigerants, contact Danfoss)
  • Compact design - Small dimensions and light weight for compact installation
  • Stainless steel - High body strength, high corrosion resistance, highly vibration-resistant, flexible capillary tube
  • Laser-welded power element insures diaphragm´s structural integrity and lengthens life
  • Stainless steel capillary tube - Tolerates more bending for easier installation and longer life, greater resistance to vibration during operation
  • Stainless steel bulb - Self-aligning for fast and easy installation; secures with a single strap or quick clip, more contact surface for better heat transfer
  • Laser engraving -  Durable positive valve identification; no labels to peel off over time

Models matching criteria: 20
  • Refrigerant - R22 / R407C
  • Connection Type - Inlet x Outlet (3/8" x 5/8")
100+ In Stock
$1,007.00 CAD
Does not ship to OH, United States
  • Refrigerant - R404A / R507
  • Range - B (-75° to -15° F), with 30 psig/ -4° F MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
100+ In Stock
$1,856.00 CAD
Does not ship to OH, United States
  • Refrigerant - R134a
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
100+ In Stock
$1,693.00 CAD
Does not ship to OH, United States
  • Refrigerant - R22 / R407C
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (3/8" x 5/8")
100+ In Stock
$2,551.00 CAD
Does not ship to OH, United States
  • Refrigerant - R407C
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (3/8" x 5/8")
50+ In Stock
$300.00 CAD
Does not ship to OH, United States
  • Refrigerant - R407C
  • Range - N (-40° to 50° F), with 95 psig/ 60° F MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
50+ In Stock
$2,322.00 CAD
Does not ship to OH, United States
  • Refrigerant - R407C
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
50+ In Stock
$1,179.00 CAD
Does not ship to OH, United States
  • Refrigerant - R410A
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
50+ In Stock
$2,362.00 CAD
Does not ship to OH, United States
  • Refrigerant - R404A / R507
  • Range - N (-40° to 50° F), with 120 psig/ 60° F MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
50+ In Stock
$740.00 CAD
Does not ship to OH, United States
  • Refrigerant - R404A / R507
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
50+ In Stock
$419.00 CAD
Does not ship to OH, United States
  • Refrigerant - R404A / R507
  • Range - NM (-40° to 23° F), with 75 psig/ 32° F MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
50+ In Stock
$1,153.00 CAD
Does not ship to OH, United States
  • Refrigerant - R404A / R507
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (3/8" x 5/8")
25+ In Stock
$1,205.00 CAD
Does not ship to OH, United States
  • Refrigerant - R407C
  • Range - N (-40° to 50° F), with 95 psig/ 60° F MOP
  • Connection Type - Inlet x Outlet (3/8" x 5/8")
25+ In Stock
$521.00 CAD
Does not ship to OH, United States
  • Refrigerant - R134a
  • Range - N (-40° to 50° F), with 55 psig/ 60° F MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
25+ In Stock
$937.00 CAD
Does not ship to OH, United States
  • Refrigerant - R410A
  • Range - N (-40° to 50° F), with 165 psig/ 60° F MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
25+ In Stock
$1,695.00 CAD
Does not ship to OH, United States
  • Refrigerant - R404A / R507
  • Range - B (-75° to -15° F), without MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
22 In Stock
$2,480.00 CAD
Does not ship to OH, United States
  • Refrigerant - R134a
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (3/8" x 5/8")
20 In Stock
$898.00 CAD
Does not ship to OH, United States
  • Refrigerant - R22 / R407C
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
14 In Stock
$310.00 CAD
Does not ship to OH, United States
  • Refrigerant - R22 / R407C
  • Range - N (-40° to 50° F), with 100 psig/ 60° F MOP
  • Connection Type - Inlet x Outlet (1/2" x 5/8")
14 In Stock
$1,480.00 CAD
Does not ship to OH, United States
  • Refrigerant - R410A
  • Range - N (-40° to 50° F), without MOP
  • Connection Type - Inlet x Outlet (3/8" x 5/8")
7 In Stock
$78.00 CAD
Does not ship to OH, United States

Specifications

Brand

Applications

  • Air Conditioning Systems
  • Conventional Refrigeration Systems
  • Heat Pump Systems
  • Ice Machines
  • Liquid Chillers
  • Specialty Refrigeration Appliances
  • Transport Refrigeration

Capillary Length

  • 5 feet (1.524 metres)

Capillary Material

  • Stainless Steel

Connection Style

  • Inlet x Outlet Solder Connections

Enclosure, Body Material

  • Stainless Steel

Materials of Construction

  • Stainless Steel - Bulb

Operating Pressure

  • psig: 660 (kPa: 4,550, bar: 45.51) - Max.

Operating Temperature

  • Maximum
  • Short-Lived Peak: 149° C (300° F)

Proof Pressure

  • psig: 725 (kPa: 4,999, bar: 49.99) - Max.

Temperature Range

  • Thermostatic Charges: -40° to 10° C (-40° to 50° F)

  • Air Conditioning Systems
  • Conventional Refrigeration Systems
  • Heat Pump Systems
  • Ice Machines
  • Liquid Chillers
  • Specialty Refrigeration Appliances
  • Transport Refrigeration
