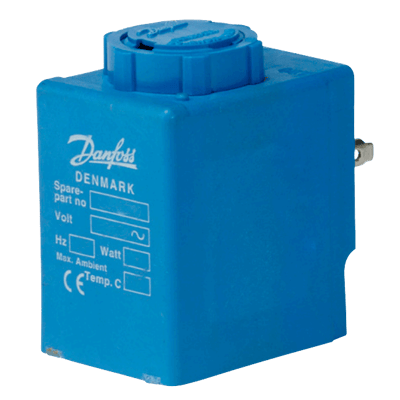

BA Solenoid Coil

Brand: Danfoss

The Danfoss coil program consists of both the easy-to-handle Clip-On system and traditional coils with threaded fastener.

Danfoss offer a wide range of application specific coils for example steam or hazardous areas. The coils are available with approvals such as EN60730-1, EEx/ATEX and UL.

Models matching criteria: 11
  • Model - BA012D
50+ In Stock
$2,342.00 CAD
Does not ship to OH, United States
  • Model - BA024A
50+ In Stock
$478.00 CAD
Does not ship to OH, United States
  • Model - BA240A
50+ In Stock
$1,417.00 CAD
Does not ship to OH, United States
  • Model - BA220B
50+ In Stock
$1,381.00 CAD
Does not ship to OH, United States
  • Model - BA115A
50+ In Stock
$216.00 CAD
Does not ship to OH, United States
  • Model - BA230A
25+ In Stock
$2,004.00 CAD
Does not ship to OH, United States
  • Model - BA024B
25+ In Stock
$227.00 CAD
Does not ship to OH, United States
  • Model - BA048A
24 In Stock
$1,070.00 CAD
Does not ship to OH, United States
  • Model - BA024D
24 In Stock
$1,544.00 CAD
Does not ship to OH, United States
  • Model - BA115B
9 In Stock
$114.00 CAD
Does not ship to OH, United States
  • Model - BA400A
6 In Stock
$1,832.00 CAD
Does not ship to OH, United States

Specifications

Brand

Ambient Temperature Range

  • -40° to 40° C (-40° to 104° F)

Applications

  • Steam

Approvals & Certifications

  • EN 60730-1
  • EN 60730-2-8
  • ATEX
  • CE
  • IEC 529
  • IEC 85
  • Low Voltage Directive (LVD) 2014/35/EU
  • RoHS Directive 2011/65/EU
  • UL
  • VDE 0580

Consumption

  • Power Consumption - 17 to 23 VA
  • Power Consumption - 8.5 to 14 W

Electrical Connectors

  • Cable Plug (042N0156)
  • DIN 43650-A Spade Connectors
  • Protective Cap

Environmental Protection

  • IP00
  • IP20
  • IP65

Frequency

  • 50/60 Hz

Input

  • AC & DC

Length

  • With Cable Plug: 3.11” (79 mm)
  • With Protective Cap: 2.795” (71 mm)
  • Without Cable Plug: 2.125” (54 mm)

Supply Voltage

  • 12-24 Vdc
  • 24-220 Vac, 60 Hz
  • 24-400 Vac, 50 Hz

Winding Insulation

  • Class H - According to IEC 85
