LS4000 In-Situ Laser Analyzer

Part Number: LS4000 Brand: ABB Group

ABB Diode Laser Analyzer

Price
$278.00 CAD
Stock
100+ In Stock

The LS4000 is an in situ cross-stack analyzer for measuring gas component concentrations.

It applies the highly selective, optical measuring principle of tunable diode laser (TDL) absorption spectroscopy.

LS4000 is a stand-alone system and is approved for use in hazardous areas according to international standards.

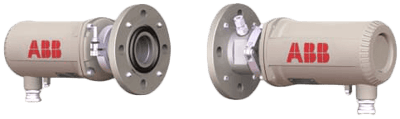

The device consists of a transmitter and a receiver unit.

The units are connected by a junction box.
Features
  • High precision
    • Lowest detection limits, highly accurate measurements
    • Highly selective, virtually cross interference free
  • Suitable for harsh process conditions
    • In situ, direct measurement of hazardous gas streams
    • For high pressure, high temperature applications
  • Fast and direct
    • In situ, no sample transport or conditioning
    • Fast response
  • Safe, compact and easy
    • Flameproof housing (Ex-d), no purging
    • No nitrogen purging for O2 measurement
    • Compact and lightweight, insensitive to vibrations
    • Ease of maintenance

Specifications

Brand

Measurement Range

  • NH₃: 0-10/0-1,000 ppm
  • H₂O: 0-10/0-50 vol %

Linearity Deviation

  • ≤ 1 % of Span

Repeatability

  • < 2 % of Reading

Output Fluctuation (2σ)

  • ≤ 1 % of smallest measurement Range

Detection Limit (4σ)

  • ≤ 2 % of smallest measurement Range

Response Time

  • Typically 5 s

Warm-Up Time

  • < 5 min

Environmental Protection

  • IP65

Housing Material

  • Stainless Steel AISI 304H (1.4308), Painted

Material of Construction

  • Window: Pre-Stressed hardened borosilicate
  • Flat Gaskets (Process): Graphite
  • Insertion Tube & validation Cell: AISI 316L (1.4404)
  • Calibration Cell: Aluminum, AISI 316L Stainless Steel (1.4404)
  • O-Ring: FPM, FFKM
  • Flange: AISI 304 (1.4301), AISI 316L (1.4404)
  • JUction-box: Steel, Painted

Process Connection

  • DN 50 / PN 10, ANSI 2 in.-150 lb, JIS 10K 50A flange
  • Gas Port: 1/4” Swagelok

Input Voltage

  • With Power Supply: 100-240 Vac, ± 10 %, 50 to 60 Hz
  • Without Power Supply: DC 24 V nominal (DC 18-32 V)

Power Consumption

  • With Power Supply: 30 VA
  • Without Power Supply: < 10 W

Output Voltage

  • With Power Supply: DC 24 V

Operating Temperature

  • -20° to 55° C

Storage / Transport Temperature

  • -40° to 70° C

Certifications & Approvals

  • CE
  • IECEE
  • UL, CSA
