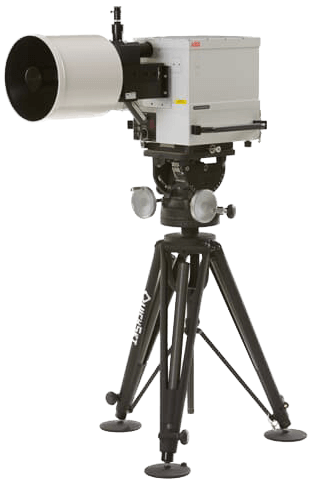

OP-MR Open-Path Gas Sensor

Part Number: OP-MR Brand: ABB Group

ABB Open-Path Gas Sensors

Price
$502.00 CAD
Stock
100+ In Stock

The OP-MR high resolution atmospheric transmission spectrum provides a finely resolved definition of the chemical species absorption fingerprint and thus a precise measurement of the chemical species concentration.

The wide spectral range coverage of FTIR (1.5 to13.5 µm) allows the measurement of a large range of chemical species simultaneously.

The instrument can provide a full atmospheric transmission spectrum within a fraction of a second.
Features
  • The ABB open path spectrometer is configured from the MR Series product line
  • Field rugged setup as a mobile system
  • High linear response of photovoltaic MCT detector
  • For improved chemometric model prediction and precise gas concentration measurements
  • Real time display of gases concentration
  • Open path length up to 500 m
  • Limit of CO2 detection < 10 ppb

Specifications

Spectral Range

  • 740 to 6,660 cm-1 (1.5 to 13.5 µm)

Resolution

  • 1, 2, 4, 8, 16, and 32 cm-1 at all wavelengths

Stability

  • Better than 0.01 cm-1

Scan Speed

  • 5 cm/s, fixed

Sensitivity

  • SNR 1000 to 1 Peak-to-Peak

Field of View

  • 5 mrad (10” Cassegrain telescope)

Detector

  • 77 K Cooled photovoltaic MCT detector (Liquid Nitrogen or Optional: Stirling Cooler)

  • Military infrared target characterization
  • Atmospheric composition analysis and meteorological sounding
  • Chemical agents signature measurements
  • Industrial emission monitoring
