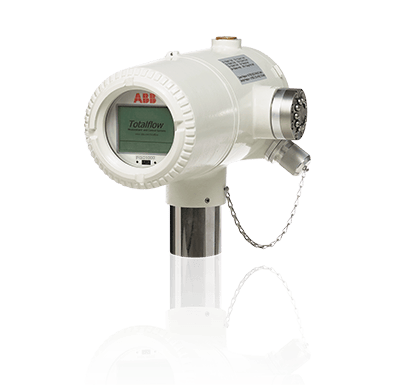

ABB Process Gas Chromatograph
Price
$1,559.00 CAD
Stock
50+ In Stock
The PGC1000 addresses a specific niche in the process industry market where customers seek analytical measurement solutions that are simple, highly accurate, cost-effective (requiring no shelter), modular and have very low maintenance and implementation requirements.
The PGC1000 is a field-mount gas chromatograph (GC) capable of measurements of C1 through C9+, inerts and H2S in various Hydrocarbon Processing Industry (HPI) streams.
This analyzer is perfect for measuring light hydrocarbon gases in locations where minimal space is available.
The PGC1000 is an excellent choice for most gas processing industry applications and for monitoring fuel gases such as natural gas, synthetic gas, methane and / or bio-gas to ensure optimal plant operations.
Features- Compact footprint – 16 inches, front to back, 28 pounds
- Conventional analytical components, not a GC on a chip
- Windows CE® operating system
- Interactive; a graphical display actuated by magnet contact
- Low cost-of-ownership – low carrier usage, and power and no instrument air
Specifications
Brand
Certifications & Approvals
- CSA
- IECES
- FCC
- China Pattern Approval
- GOST-R
- KOGAS
- TIIS
- ATEX
- IECEx
- EMC
Environmental Protection
- IP56
- Type 4X (IP66 Equivalent)
Media
- Helium, hydrogen and Nitrogen
Repeatability
- (Typically ± 1 % of the measured value
Temperature Range
- -40° to 130° F (-40° to 55° C) Cold Weather Enclosure
- 0° to 130° F (-18° to 55° C) normal
Supply Voltage
- 24 Vdc (21-28 Vdc capable)
- 12 Vdc (10.5-16 Vdc capable)
Power Consumption
- Nominal: 7 Watts (no auxiliary Heater)
- Up to 64 Watts (with auxiliary Heater)
Input / Output
- 2 Digital Inputs (DI) / 2 Digital Outputs (DO), Analog outputs externally and project-based
