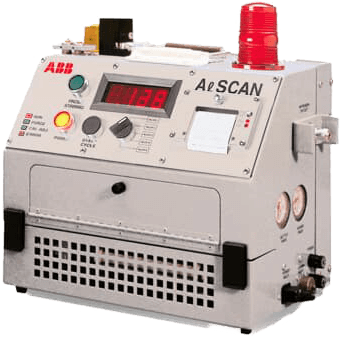

AlSCAN Hydrogen Analyzer

Part Number: AlSCAN Brand: ABB Group

ABB Hydrogen Analyzer to Directly Monitor the Dissolved Hydrogen Content in Liquid Aluminum

Price
$1,962.00 CAD
Stock
22 In Stock

The AlSCAN is a reliable quantitative technique to directly monitor the dissolved hydrogen content in liquid aluminum.

This technique is fast, accurate over a broad measurement range and offers outstanding reproducibility.

The AlSCAN is recognized by the industry with more than 400 units sold worldwide.

The AlSCAN hydrogen analyzer is portable and designed to survive the severe plant environment.

The analyzer is automated, easy to use and can be operated by non-technical floor personnel.

Once started up, the unit operates autonomously and requires no special attention.

Specifications

Range

  • 0 to 9.99 mL of hydrogen per 100 g of Aluminum (mL/100 g)

Reproductivity

  • ± 0.01 mL/100 g or 5 % of Reading, whichever is higher

Sensor Type

  • Thermal conductivity catharometer

Display

  • 3-1/2 Digits, 2.5 cm (1 in.) high LEDs

Communication

  • Serial, RS-232 (Standard)

Media

  • Nitrogen or Argon

Power Supply

  • 100-240 Vac, 50/60 Hz

Power Consumption

  • 0.9 A at 100 V, 0.4 A at 240 V

Operating Temperature

  • 10° to 50° C (50° to 122° F)

Storage Temperature

  • 10° to 50° C (50° to 122° F)

Humidity

  • Up to 90 %, Non-Condensing

  • Accurate on-line quantitative measurement of dissolved hydrogen
  • Continuous monitoring capabilities
  • Probe failure detection option
