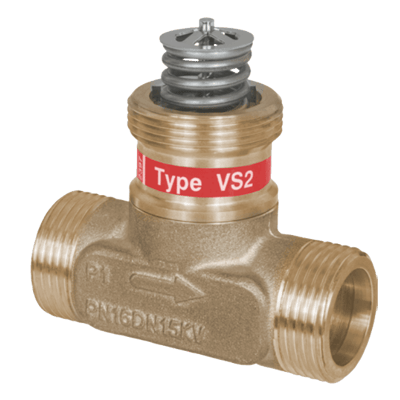

VS 2 2-Way Seated Valve
Brand: DanfossVS 2 is two-way valve designed to work with Danfoss electric actuators AMV 150, AMV(E) 10, AMV(E) 20, AMV(E) 30 or Danfoss electric actuators with spring return function AMV(E) 13, AMV(E) 23 and AMV(E) 33.
VS 2 valve is generally recommended for use in most demanding conditions in systems such as:
- District heating
- Heating
- Hot water service with heat exchanger or storage tank, where they ensure long and unproblematic performance
- SPLIT characteristic developed for most demanding applications (DN 20 and DN 25)
- Several kVS values
- Push connection for easy mechanical connection with actuator
- Control range min. 50:1
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 8
- Size - DN 15
- Flow Rate - 0.63 m³/hour
- Connection - G 3/4" A
50+ In Stock
$2,250.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 0.25 m³/hour
- Connection - G 3/4" A
50+ In Stock
$2,454.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 1.6 m³/hour
- Connection - G 3/4" A
50+ In Stock
$935.00 CAD
Does not ship to OH, United States
- Size - DN 25
- Flow Rate - 4 m³/hour
- Connection - G1-1/4" A
25+ In Stock
$250.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 0.25 m³/hour
25+ In Stock
$649.00 CAD
Does not ship to OH, United States
- Size - DN 20
- Flow Rate - 2.5 m³/hour
- Connection - G 1" A
20 In Stock
$938.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 1 m³/hour
- Connection - G 3/4" A
2 In Stock
$1,324.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 0.4 m³/hour
- Connection - G 3/4" A
1 In Stock
$250.00 CAD
Does not ship to OH, United States
Specifications
Brand
Applications
- Heating Applications
- Hot Water Service Application with Heat Exchanger
- Indirect District Heating Substation
Approvals & Certifications
- EN 1092-3
BSP Connection
- G 1” A Male
- G 1-1/4” A Male
- G 3/4” A Male
Cone Material
- Stainless Steel
Connection Style
- External Thread
Control Functions Characteristics
- Lin - for DN 15
- Split - for DN 20 & DN 25
Enclosure, Body Material
- Valve Body: Dezincing Free Brass
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 16
Flange Size - 1/2” (DN 15)
- 1/2” (DN 15) - PN 16
Flange Size - 3/4” (DN 20)
- 3/4” (DN 20) - PN 16
Flow Rate
- 0.25 to 4 m³/hour (Kvs)
Materials of Construction
- Cone: Stainless Steel
Maximum System Pressure
- psi: 145 (kPa: 1,000, bar: 10) - Max.
- psi: 87.02 (kPa: 600, bar: 6) - Max.
Media
- Circulation Water, Glycolic Water up to 30 %, pH: 7 to 10
Nominal Pressure
- psi: 232.1 (kPa: 1,600, bar: 16)
Process Temperature
- 2° to 130° C (35.6° to 266° F)
Seat / Seal Material
- Seat: Stainless Steel
Spindle Material
- Stainless Steel
Welded Connection
- DN 15 Weld End
- DN 20 Weld End
- DN 25 Weld End
