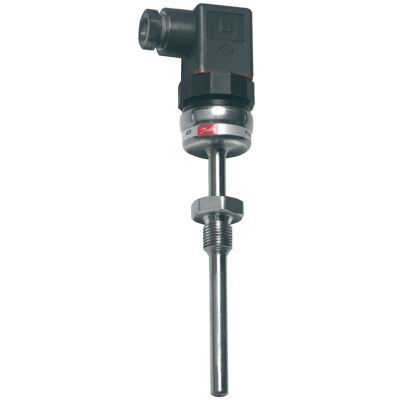

MBT 3560 Temperature Sensor

Brand: Danfoss

With MBT 3560 we have combined the technology of our standard temperature sensors and the electrical connections from our MBS pressure transmitters with a new developed electronics which has resulted in a compact temperature sensor with a built-in transmitter.

The MBT 3560 is designed for use in harsh industrial enviroments where reliable, robust and accurate equipment is required. Available with a wide selection of process and electrical connections.

Can be delivered with a 33 mm extension length which makes it possible to measure temperatures up to 200° C without damaging the built-in electronics.
Features
  • Designed for use in harsh industrial environments where reliable, robust and accurate equipment is required
  • All metal enclosure parts made of stainless steel (AISI 316)
  • Output signals: 4-20 mA or Ratiometric 10% to 90%
  • A wide selection of process and electrical connections
  • Ultra compact design
  • Temperature range -50° to 200° C
  • Sensor pockets available for applications where emptying the system is not an option
  • Based on Pt 1000 technology

Specifications

Brand

Accuracy

  • < ± 0.5 % of Full Scale - Typical
  • < ± 1 % of Full Scale, Max.

Approvals & Certifications

  • EMC (Emission - EN 61000-6-3), (Immunity - EN 61000-6-2)

BSP Connection

  • G 1/2” A Male
  • G 1/4” A Male
  • G 3/8” A Male

Cable Length

  • 6.56 feet (2 metres) - Screened Cable

Cable Material

  • Polyurethane

Consumption

  • < 4 mA at 5 Vdc - Supply Current Consumption for Ratiometric 10 to 90 %

Current

  • 30 mA - Current Limitation for 4-20 mA

Diameter

  • Protection Tube Diameter: 0.314” (8 mm)

Electrical Connectors

  • AMP Econoseal
  • Female Connector
  • Flying Leads
  • M12 x 1
  • Male Connector
  • PG9
  • Plug Connection (EN 175301-803, IEC 947-5-2)

Environmental Protection

  • IP65
  • IP67

Insertion 'U' Length

  • 1.96” to 9.84” (50 to 250 mm)

Insulation Resistance

  • > 100 megaohms at 100 Vdc

Load Resistance

  • Load: RL > 5 kiloohms at 5 Vdc for Ratiometric 10 to 90 % of Supply Voltage

Materials of Construction

  • Glass-Filled Polyamide, PA 6.6 - Flying Lead & Plug

Maximum System Pressure

  • psi: 1,450 (kPa: 10,000, bar: 100) - Max.

Measuring Range

  • Any Combinations between -50° to 200° C (-58° to 392° F)

NPT Connection

  • 1/2” NPT Male

Output

  • Output Signal: 10 to 90 % Ratiometric (3-Wire)
  • Output Signal: 4-20 mA, 2-Wire

Output Impedence

  • < 25 ohms for Ratiometric 10 to 90 % of Supply Voltage

Process Temperature

  • -50° to 200° C (-58° to 392° F) - Media Temperature, Max.

Response Time

  • Indicative Response Time: 10 to 35 seconds for Water 0.2 m/sec
  • Indicative Response Time: 95 to 310 seconds for Air 1 m/sec

Sensor / Probe Type

  • Pt1000

Shock

  • Shock Resistance: 500 G, 1 millisecond as Per IEC 60068-2-27

Span - Minimum

  • 25° C (77° F)

Standard Features

  • Ultra Compact Design

Supply Voltage

  • < ± 0.05 % of Full Scale/10 V - Dependency for 4-20 mA
  • Polarity Protected: 10-30 Vdc for 4-20 mA
  • Polarity Protected: 4.75-8 Vdc for Ratiometric 10 to 90 %
  • Polarity Protected: 5 Vdc Nominal for Ratiometric 10 to 90 %

Temperature Range

  • -40° to 85° C (-40° to 185° F) - Temperature on Electronics
  • -50° to 85° C (-58° to 185° F) - Transport Temperature

Vibration

  • 15.9 mm-pp
  • Random Vibration: 7.5 G RMS, 5 to 1,000 Hz (IEC 600868-2-34, IEC 60068-2-36)
  • Vibration Stability: 4 G at 25 Hz to 2 kHz (IEC 60068-2-6)

Wetted Materials

  • 316L Stainless Steel
  • 316Ti Stainless Steel
