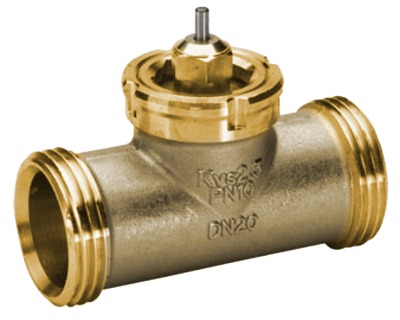

Danfoss 2-Way Seated Valve, VMT
Images are representations only.

VMT 2-Way Seated Valve

Brand: Danfoss

VMT is 2-way seated valve primarily for use in heating systems. It can be combined with:
  • ABV and ABNV thermohydraulic actuators
  • RAVI, RAVK and RAVV self-acting thermostatic actuators
  • ABNV can be combined with VMT-/8 valves only

Specifications

Brand

Applications

  • Heating Systems

Approvals & Certifications

  • ISO 228/1

BSP Connection

  • G 1" A Male
  • G 1-1/4" A Male
  • G 3/4" A Male

Cone Material

  • Valve: NBR Rubber

Connection Style

  • External Thread

Differential Pressure

  • Maximum

Enclosure, Body Material

  • Valve: Brass

Flow Rate

  • 1.5 to 8 Kvs (m³/hour)

Materials of Construction

  • Pressure Pin: CrMo Steel

Media

  • Circulation Water, Glycolic Water up to 30 %, pH: 7 to 10

Nominal Pressure

  • psi: 145 (kPa: 1,000, bar: 10)

Process Temperature

  • 2° to 120° C (35° to 248° F)

Valve Size

  • 1" (25 mm)
  • 1/2" (15 mm)
  • 3/4" (20 mm)

  • Heating Systems
