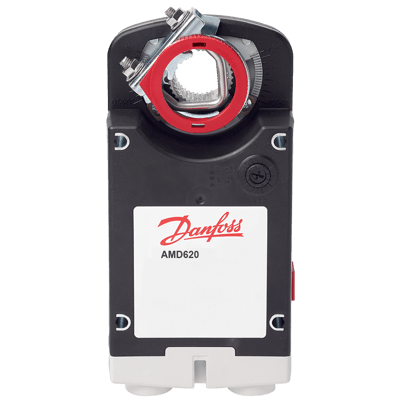

AMD 620/620 AS Damper Actuator

Brand: Danfoss

AMD actuators are used for the regulation of air dampers of 90° angle of rotation to be used in heating, ventilation and air conditioning applications (HVAC).
Features
  • Manual operation
  • Rotation direction selection by switch
  • Adjustable angle of rotation by mechanical end stop
  • Position indication
  • Overload protection
  • Direct mounting with universal spindle clamp
  • Anti-rotation strap for preventing actuator from rotating
  • Maintenance free

Models matching criteria: 2
  • Auxiliary Switch - Without Auxiliary Switch
50+ In Stock
$437.00 CAD
Does not ship to OH, United States
  • Auxiliary Switch - 2 Auxiliary Switch
25+ In Stock
$612.00 CAD
Does not ship to OH, United States

Specifications

Brand

Ambient Temperature Range

  • -30° to 50° C (-22° to 122° F)

Applications

  • Air Conditioning
  • Heating Applications
  • Ventilation Systems

Approvals & Certifications

  • CE (2011/65/EU)
  • EMC Directive 2004/108/EC: EN 61000-6-2, EN 61000-6-3
  • Low Voltage Directive (LVD) 2006/95/EC: EN 60730-1, EN 60730-2-14
  • RoHS

Class

  • Protection Class II (230 V)
  • Protection Class III (24 V)

Consumption

  • 1.5 W at 24 V - Power Consumption in Stand-By (End Position)
  • 3 W at 24 V - Power Consumption in Motion

Environmental Protection

  • IP54

Frequency

  • 50/60 Hz

Humidity

  • 5 to 95 % - Non-Condensing RF (EN 60730-1) - Ambient Humidity

Indication

  • Position Indicator

Input

  • Control Input: 0-20 mA, 500 ohms
  • Control Input: 4-20 mA, 500 ohms
  • Control Input: 0-10 V, 100 kiloohms
  • Control Input: 2-10 V, 100 kiloohms

Input Signal

  • Control Input Signal: 2/3-Point (Depend on Wiring)
  • Control Input Signal: Modulating

Mounting

  • Direct Mounting

Operation

  • Manual Operation

Output Noise

  • < 45 dBA - Sound Power Level Motor

Power Supply

  • 230 Vac/dc ± 20 %
  • 24 Vac/dc ± 20 % (Rated Impulse Voltage: 0.8 kV According to EN 60730-1)

Rotation

  • 0° to 95°

Speed

  • 150 seconds/90°

Storage Temperature

  • -30° to 80° C (-22° to 176° F)

Torque

  • 20 Nm (177 in/lbs)

  • Heating, Ventilation and Air Conditioning applications (HVAC)
