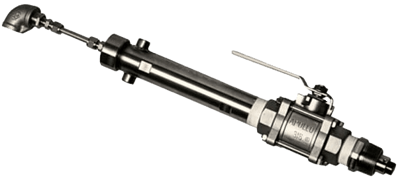

TB47 High Pressure Hot-Tap Type Stainless Steel Electrode

Brand: ABB Group

The TB47 conductivity cell can be directly inserted into, or removed from, lines and vessels without disturbing the process.

Designed for service in systems exceeding pressure ranges of standard hot-tap sensors, these high pressure, hot-tap sensors also ensure worker safety.

Closing a ball valve isolates an extraction housing, separating the operator from the sensor and process.

The housing can be pressurized or depressurized and purged by installing flush and / or drain lines to the 1/4"NPT purge connections.

Ruggedly constructed of 316 stainless steel, these sensors withstand the most demanding processes and measurement requirements.
Features
  • High pressure capability
  • Purgeable sensor extraction housing

Models matching criteria: 75
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 15.2 m (50 ft)
100+ In Stock
$2,098.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 15.2 m (50 ft)
100+ In Stock
$2,153.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 10.6 m (35 ft)
100+ In Stock
$1,747.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 7.6 m (25 ft)
100+ In Stock
$611.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 30.5 m (100 ft)
100+ In Stock
$2,233.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 15.2 m (50 ft)
100+ In Stock
$2,456.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 3.0 m (10 ft)
100+ In Stock
$2,527.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 9.1 m (30 ft)
100+ In Stock
$237.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 30.5 m (100 ft)
100+ In Stock
$245.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 7.6 m (25 ft)
50+ In Stock
$416.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 1.5 m (5 ft)
50+ In Stock
$2,123.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 7.6 m (25 ft)
50+ In Stock
$1,141.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 12.1 m (40 ft)
50+ In Stock
$1,771.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 7.6 m (25 ft)
50+ In Stock
$1,845.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 1.5 m (5 ft)
50+ In Stock
$2,472.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 15.2 m (50 ft)
50+ In Stock
$1,495.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 4.5 m (15 ft)
50+ In Stock
$1,680.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 9.1 m (30 ft)
50+ In Stock
$1,991.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 13.7 m (45 ft)
50+ In Stock
$1,186.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 6.0 m (20 ft)
50+ In Stock
$1,297.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 12.1 m (40 ft)
50+ In Stock
$2,560.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 12.1 m (40 ft)
50+ In Stock
$1,393.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 9.1 m (30 ft)
50+ In Stock
$2,172.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 10.6 m (35 ft)
50+ In Stock
$2,008.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 4.5 m (15 ft)
50+ In Stock
$2,347.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Replacement Sensor Only
  • Integral Cable Length - 3.0 m (10 ft)
50+ In Stock
$1,291.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 4.5 m (15 ft)
50+ In Stock
$68.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 15.2 m (50 ft)
50+ In Stock
$806.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 9.1 m (30 ft)
50+ In Stock
$367.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
50+ In Stock
$1,411.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 10.6 m (35 ft)
50+ In Stock
$2,551.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 9.1 m (30 ft)
50+ In Stock
$2,414.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 13.7 m (45 ft)
50+ In Stock
$1,158.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 3.0 m (10 ft)
50+ In Stock
$467.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 10.6 m (35 ft)
50+ In Stock
$1,974.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 30.5 m (100 ft)
50+ In Stock
$1,450.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly with Ball Valve & Coupling
  • Integral Cable Length - 22.9 m (75 ft)
50+ In Stock
$1,468.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 22.9 m (75 ft)
50+ In Stock
$922.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - No Cable, Junction Box Included
50+ In Stock
$606.00 CAD
Does not ship to OH, United States
  • Measuring Range - 0 to 2,000,000 µS/cm
  • Hot-tap Material - 316 Stainless Steel
  • Integral Temperature Compensation - 3,000 Ohmes
  • Mounting Accessories - TB47 Complete Sensor Assembly without Ball Valve & Coupling
  • Integral Cable Length - 7.6 m (25 ft)
50+ In Stock
$1,778.00 CAD
Does not ship to OH, United States

Specifications

Measurement Range

  • 0 to 2,000,000 μS/cm
  • 0 to 2,000 μS/cm

Maximum Pressure

  • 2,068 kPag (300 psig)

Maximum Temperature

  • 200° C (392° F)

Body Material

  • 316 Stainless Steel

Material of Construction

  • Electrodes, extraction housing, insertion, compression Fitting: 316 Stainless Steel
  • Insulator: PEEK
  • O-Rings: Viton (Internal), Ethylene propylene (External)
  • Compression Fitting Ferrule: Kynar (PVDF)
  • Ball valve seats: PTFE

Cable Length

  • 1.5 to 30.5 m (5 to 100 ft)

  • Boiler condensate measurements
  • Pulp stock lines
  • Sealed vessel monitoring
  • Pulp liquor
  • Toxic chemical monitoring
  • Heat exchangers
  • Concentration monitoring
  • All other conductivity measurements requiring special worker safety considerations
show more
