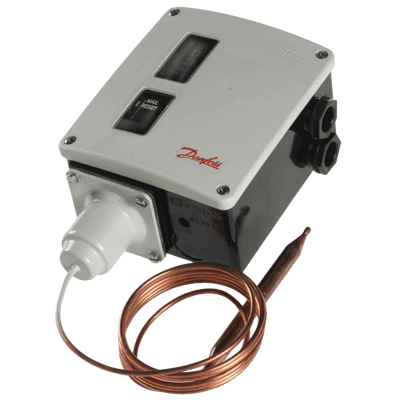

RT Temperature Control
Brand: DanfossRT temperature controls incorporate a temperature controlled, single-pole changeover switch where the contact position depends on the temperature of the sensor and the set scale value.
The RT series consists of temperature controls with room sensors, duct sensors and capillary tube sensors for general industrial and marine applications.
Features- Simple design
- High accuracy
- High repeatability
- Long operational life time
- Available with all major marine approvals
Specifications
Brand
Ambient Temperature Range
- -50° to 70° C (-58° to 158° F)
Applications
- General Industrial Applications
- Marine & Offshore Applications
Approvals & Certifications
- BV
- CCC
- CE Marked According to EN 60947-4/-5
- DNV
- GL
- IEC 529
- LRS
- NKK
- RINA
- RMRS
BSP Connection
- G 1/2" Female A (Pipe Thread ISO 228/1)
Cable Entry
- PG13.5 for 0.24" to 0.55" (6 to 14 mm) Diameter Cable
Capillary Length
- 6.5 to 32.8 feet (2 to 10 metres)
Cover Material
- Polyamide
Electrical Contacts
- Gold-Plated AgCdO
Electrical Rating
- 10 A at 400 V (Ohmic)
- 12 W at 230 Vdc
- 28 A (14 A, 20 A) at 400 Vac: Blocked Rotor
- 3 A at 400 Vac (Coil/Transformer)
- 4 A at 400 Vac (Inductive)
Enclosure, Body Material
- Bakelite According to DIN 53470 (Thermostats)
Environmental Protection
- IP54: Units Supplied with External Reset
- IP66 According to IEC 529 & EN 60529
Operating Temperature - Sensor
- 65° to 350° C (149° to 662° F)
Sensor, Probe Material
- Copper
- Sensor Pocket: 18/8 Steel (1.4301)
- Sensor Pocket: AISI 316L Stainless Steel (1.4435)
- Sensor Pocket: Brass
Set Point - Decreasing
- -45° to 300° C (-49° to 572° F) - Temperature Controls with Cylindrical Remote Sensor
- -5° to 90° C (-23° to 194° F) - Temperature Controls with Adjustable Neutral Zone
- -50° to 90° C (-58° to 194° F) - Temperature Controls with Room Sensor, Duct Sensor & Capillary Tube Sensor
Set Point - Increasing
- -45° to 300° C (-49° to 572° F) - Temperature Controls with Cylindrical Remote Sensor
- -5° to 90° C (-23° to 194° F) - Temperature Controls with Adjustable Neutral Zone
- -50° to 90° C (-58° to 194° F) - Temperature Controls with Room Sensor, Duct Sensor & Capillary Tube Sensor
Switch Type
- SPDT
