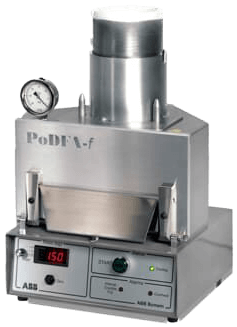

PoDFA Inclusion Identification and Auantification

Part Number: PoDFA Brand: ABB Group

ABB The Complete Solution for Inclusion Measurement Inclusion Identification and Quantification Analysis

Price
$917.00 CAD
Stock
100+ In Stock

The PoDFA technique consists of filtering, under controlled conditions, a predetermined quantity of liquid aluminum through a very fine porosity filter disc.

Inclusions of the melt are concentrated at the filter surface by a factor of 10,000.

Developed by Alcan and commercialized by ABB, PoDFA is a method of metal cleanliness evaluation that provides both qualitative information on the nature of inclusions and quantitative information on the inclusion concentration.

This technology is ideal for process control and development as well as for product certification.

It can help assess the effect of various operating practices on metal cleanliness.

Specifications

Measurement Range

  • Mass: 0 to 5 kg ± 0.02 kg

Display

  • 3-1/2 Digits, 12.7 mm (0.56 in.) high LEDs

Power Supply

  • 100-240 Vac, 50/60 Hz

Operating Temperature

  • 10° to 50° C (50° to 122° F)

Storage Temperature

  • -10° to 75° C (14° to 167° F)

Humidity

  • Up to 90 % Non-Condensing

Process Connection

  • Air Fitting: 1/4” Female NPT

Air Consumption

  • Vacuum: 340 L/min (12 scfm) at 100 psi
  • Cooling: 665 L/min (23.5 scfm) at 100 psi

Materials of Construction

  • Filter outer shell: carbon Steel, Aluminum & Silica
  • Filter Inner shell: Stainless Steel
  • Filter insulation: Synthetic vitreous
