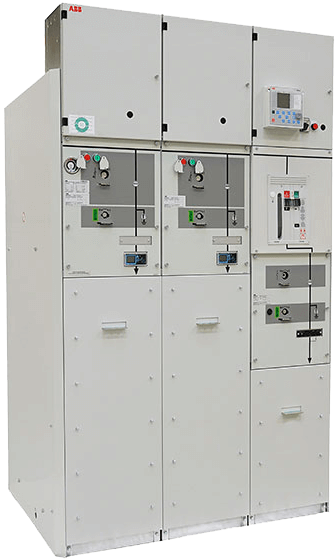

SafePlus Secondary Gas Insulated Switchgear

Brand: ABB Group

SafePlus is a metal-enclosed compact switchgear system for distribution applications from 6 to 40.5 kV.

The switchgear has a unique flexibility due to its extendibility and the possible combination of fully modular and semi-modular configurations.

SafePlus uses SF6 (Sulfur hexafluoride) as an insulation and quenching medium.

The SF6 is contained in a welded, stainless steel, sealed-for-life enclosure with an operating lifetime better than 30 years.

The leakage rate is less than 0.1% per year!

The switchgear is type tested according to ANSI/IEEE C37.20.3, C37.58, C37.54, and UL listed.

It is rated 38kV / 20kA / 600A, non-arc resistant.

Available panels include cable switch, vacuum circuit breaker, and air insulated cable riser.
Features
  • 40.5kV / 630A (38kV / 600A)
  • Auto-reclosing capability
  • Metal-enclosed design
  • No exposure of live parts
  • Virtually maintenance free
  • Dead end outer cone cable termination system (IEC type B plug in bushings, type C bolted profile bushings or IEEE Dead-Break bushings)
  • 16.5 inches / 420 mm wide functional units
  • Type tested according to all relevant IEEE and IEC standards *
  • Manufactured according to ISO 9001, 14001 and OHSAS 18 001
  • Carefully selected materials ensure 88% recycling capability for minimal environmental impact
  • Rear viewports for visual verification of the three position disconnect status
  • No gas filling required on site

  • Oil and Gas
  • Mining
  • Pulp and Paper
  • Cement
  • Textiles
  • Chemicals
  • Automotive
  • Petrochemical
  • Data Centers
  • Metallurgy
  • Food and Beverage
  • Rolling Mills
