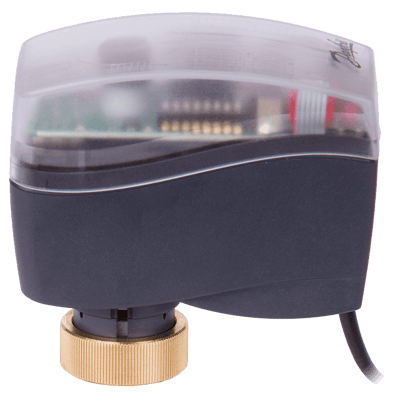

AMV 110/120 NL Modulating Control Actuator
Brand: DanfossThe actuators are used together with automatically balanced combination valve type AB-QM for DN10 to 32.
Typical applications for that products are: Temperature control and permanent automatic balancing on terminal units (fan-coils, chilled ceilings, air-handling units).
Specifications
Brand
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Applications
- Fancoils / Induction Units
- Overload Preventing System of Actuator & Valve
- Permanent Automatic Balancing on Terminal Units
- Temperature Control
Approvals & Certifications
- CE
- EMC Directive 2004/108/EC
- Low Voltage Directive (LVD) 2006/95/EC
Approvals & Certifications
- EN 60730-1
- EN 60730-2-14
- EN 61000-6-2
- EN 61000-6-3
Cable Length
- 4.92 to 32.81 ft (1.5 to 10 metres)
Consumption
- Power Consumption (Running): 1 VA
Electrical Connectors
- Halogen Free Cable
Environmental Protection
- IP42
Frequency
- 50/60 Hz
Humidity
- Maximum
Mounting Position
- Horizontal or Stem Pointing Upwards
Power Supply
- 24 Vac, (-15 to 10 %)
Process Temperature
- Maximum
Storage Temperature
- -40° to 70° C (-40° to 158° F)
Supply Voltage
- 24 Vac
Switch Points
- Three Switch Points
