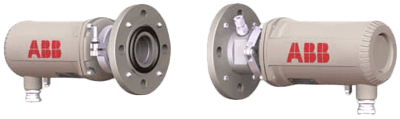

LS25 In-Situ Laser Analyzer

Part Number: LS25 Brand: ABB Group

ABB In-Situ Cross Duct Analyzers for Measuring Gas Concentrations, Can be Combined with Further Analyzer Modules and Completely Operated Remotely in Ethernet Networks

Price
$346.00 CAD
Stock
50+ In Stock

LS25 is in-situ cross duct analyzer for measuring gas concentrations.

It apply the highly selective, optical measuring principle of tunable diode laser (TDL) absorption spectroscopy.

For measurement purposes a single absorption line is selected from the gas to be measured in the near infrared spectral range, at which no cross-sensitivity from other gases occurs.

The absorption line is scanned and the receiver located opposite detects the absorption caused by the sample gas and calculates the gas concentration from this.

The transmission rate is displayed as a signal for predictive maintenance.

Specifications

Brand

Linearity Deviation

  • ≤ 1 % of Span

Repeatability

  • ± Detection limit or ± 1 % of Reading, whichever is greater

Zero Point Drift

  • < 2 % of smallest possible measurement Range per 3 months

Span Drift

  • < 4 % of measurement Range per 6 months

Detection Limit

  • ≤ 1 % of smallest measurement Range

Output Fluctuation (2σ)

  • ≤ 0.5 % of smallest measurement Range

Material of Construction

  • Purge and Alignment Unit: 316 Stainless Steel
  • Windows: BK7 Glass, optional fused Silica, for HF: Sapphire

Power Supply

  • DC 24 V ± 5 %

Power Consumption

  • Approximately 20 W

Certifications & Approvals

  • ATEX
  • CSA

Environmental Protection

  • IP66

Ambient Temperature

  • -20° to 55° C, No direct Solar radiation

Combustion control, DeNOx, glass & steel processes.
