EasyLine EL3000 Series Continuous Gas Analyzer

Brand: ABB Group

EasyLine is a powerful yet cost-effective line of devices for the measurement of gas concentrations in numerous applications.

Automatic calibration and the use of superior ABB calibration cell technology in the photometer avoids the use of expensive test gas cylinders in most applications.

Zero-point calibration with ambient air.

Various analyzer types available: Combining different analyzers in a single housing enables optimum economy and operational efficiency for your application.
Features
  • Flame Ionization Detector
  • Proven analyzer technology
  • Intuitiv operation via five buttons
  • UV photometer
  • Infrared photometer
  • Paramagnetic oxygen analyzer
  • Electrochemical oxygen sensor
  • Thermal conductivity analyzer
  • Trace oxygen analyzer
  • Extensive self-diagnosis functions
  • Internal QAL3 reporting option according EN 14181
  • Web server included for easy read-out by Internet browsers
  • First analyzers already meets the new European guideline EN 15267
  • 19" wide for rack mounting
  • Compact, purgeable IP65 enclosure for wall mounting

Models matching criteria: 2
ABB Wall-Mount Housing
100+ In Stock
$1,734.00 CAD
Does not ship to OH, United States
ABB 19-inch Housing
13 In Stock
$361.00 CAD
Does not ship to OH, United States

Specifications

Brand

Mounting Type

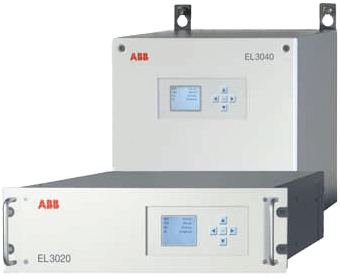

  • EL3020: 19-inch housing
  • EL3040: wall-mount housing

Housing Protection

  • IP20
  • IP65
  • IP40 in version for emissions monitoring

Working Pressure

  • Pressure Sensor: 600 to 1,250 hPa

Wetted Material

  • Silicone gel, Plastics, FPM (Fluorocarbon Rubber)

Operating Temperature

  • 5° to 45° C

Storage & Transport Temperature

  • -25° to 65° C

Humidity

  • < 75 % Relative Humidity, No Condensation

Input Voltage

  • 100-240 Vac, -15 %/+10 %, 50 to 60 Hz ± 3 Hz

Power Consumption

  • Maximum 187 VA

Certifications & Approvals

  • CE conformity
  • SIL Conformity
  • CSA
  • GOST TR CU
