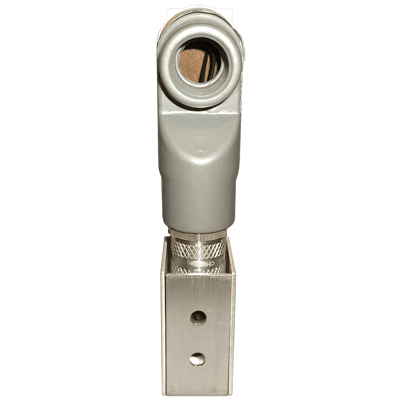

TE-205-F Temperature Sensor

Brand: Mamac

The TE-205-F outdoor air temperature sensor meets the rigorous requirements of building owners and control professionals who need reliable outdoor air temperature data.

This rugged, reliable outdoor air sensor incorporates more than thirty plus years of product development and experience drawn from millions of installations world wide in all types of climatological situations.

The TE-205-F features the well known MAMAC Systems temperature probe, carefully sealed in the aluminum enclosure to prevent building air from escaping across the sensor.

The temperature probe features cold rolled 304 stainless steel that is hermetically sealed to form a monolithic encapsulated cavity for the sensor and is immune to failure caused by high humidity, contamination, thermal shock and vibration.

The flat probe end provides a large thermally sensitive area and the sensor is in direct thermal contact to the surface.

As a result, extremely fast response is achieved to changes in temperature.

This product and process design combined with automated manufacturing processes yields a rugged, reliable, repeatable and stable outdoor air temperature sensor.

Models matching criteria: 16
  • Sensor - 100 Ohms Platinum RTD
100+ In Stock
$1,274.00 CAD
Does not ship to OH, United States
  • Sensor - 1,000 Ohms Nickel RTD (5000 ppm)
100+ In Stock
$2,048.00 CAD
Does not ship to OH, United States
  • Sensor - 5,000 Ohm NTC Thermistor
100+ In Stock
$1,850.00 CAD
Does not ship to OH, United States
  • Sensor - 1,035 Ohms Silicon PTC
100+ In Stock
$344.00 CAD
Does not ship to OH, United States
  • Sensor - 3,000 Ohms NTC Thermistor
50+ In Stock
$1,893.00 CAD
Does not ship to OH, United States
  • Sensor - 10,000 Ohms NTC Thermistor (Eliwell)
50+ In Stock
$79.00 CAD
Does not ship to OH, United States
  • Sensor - 10,000 Ohms NTC Thermistor (Type II)
50+ In Stock
$601.00 CAD
Does not ship to OH, United States
  • Sensor - 10,000 Ohms NTC Thermistor (Carel)
50+ In Stock
$175.00 CAD
Does not ship to OH, United States
  • Sensor - 2,252 Ohms NTC Thermistor
50+ In Stock
$1,548.00 CAD
Does not ship to OH, United States
  • Sensor - 1,800 Ohms NTC Thermistor
50+ In Stock
$347.00 CAD
Does not ship to OH, United States
  • Sensor - 20,000 Ohms NTC Thermistor
50+ In Stock
$2,555.00 CAD
Does not ship to OH, United States
  • Sensor - 100,000 Ohms NTC Thermistor
25+ In Stock
$1,090.00 CAD
Does not ship to OH, United States
  • Sensor - 1,000 Ohms Platinum RTD
25+ In Stock
$1,867.00 CAD
Does not ship to OH, United States
  • Sensor - 10,000 Ohms NTC Thermistor (Type III)
18 In Stock
$2,403.00 CAD
Does not ship to OH, United States
  • Sensor - 1,000 Ohms Nickel RTD (6000 ppm)
6 In Stock
$1,964.00 CAD
Does not ship to OH, United States
  • Sensor - 1,000 Ohms Balco RTD
2 In Stock
$458.00 CAD
Does not ship to OH, United States

Specifications

Brand

Accuracy

  • ± 0.1 % at 0° C (32° F) - Platinum RTD Sensors
  • ± 0.2° C (± 0.36° F) Interchangeability at 77° F (25° C) - Thermistor Sensors
  • ± 0.28° C (± 0.5° F) at 21.1° C (70° F) - Nickel & Balco RTD Sensors
  • ± 0.5° C (1° F) at 0° C (32° F) - Nickel RTD Sensors

Ambient Temperature Range

  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE
  • EMC BS EN 55022: 1998, BS EN 55024: 1998, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
  • RoHS

Electrical Connectors

  • DIN 43760

Enclosure, Body Material

  • Die Cast Aluminum A360

Measuring Range

  • 4,300 ppm - Balco RTD Sensors
  • 5,000 ppm- Nickel RTD Sensors
  • 6,000 ppm - Nickel RTD Sensors

NPT Connection

  • 1/2” NPT Female

Operating Temperature

  • -40° to 100° C (-40° to 212° F)

Resistance

  • Sensors: 100 to 100,000 ohms

Sensor, Probe Diameter

  • 1/4” (6.3 mm) O.D.

Sensor, Probe Material

  • 0.5 mm Wall 304 Stainless Steel

Sensor, Probe Material

  • Sensor: Balco RTD
  • Sensor: Nickel RTD
  • Sensor: Platinum RTD

Sensor, Probe Type

  • RTD
  • Thermistor
