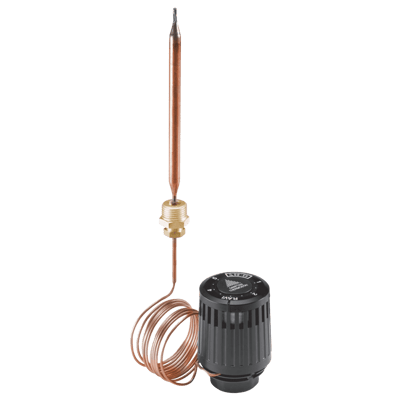

RAVI Thermostatic Actuator

Part Number: 013U8008 Brand: Danfoss

DANFOSS Setting Range 43° to 65° C, Capillary Tube Length 2.0 M, Max. Sensor Temp 70° C

Price
$1,053.00 CAD
Stock
15 In Stock

RAVI is self-acting thermostatic actuator primarily for use for temperature control of small hot water cylinders - either storage type cylinders or instantaneous hot water heaters.

RAVI can be combined with 2-way valves:
  • RAV-/8
  • VMT-/8
  • VMA
Controller closes on rising temperature. The temperature controller is type-tested according to EN 14597.

Specifications

Brand

Applications

  • Temperature Control of Small Hot Water Cylinders

Approvals & Certifications

  • EN 14597

BSP Connection

  • 1-1/2” BSPP Female

Capillary Length

  • 6 feet (2 metres) - Capillary Tube Length

Capillary Material

  • Copper - Capillary Tube

Media

  • Circulation Water
  • Glycolic Water up to 30 %

Operating Temperature - Sensor

  • Maximum

Temperature Range

  • 43° to 65° C (109.4° to 149° F) - Setting Range

  • Temperature Control of Small Hot Water Cylinders
