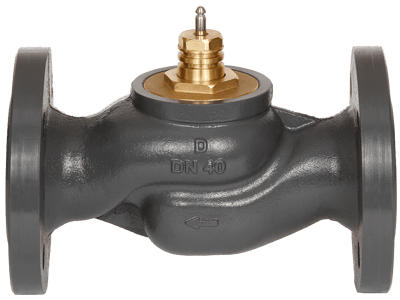

VL 2 2-Way Seated Valve

Brand: Danfoss

VL 2 valves provide a quality, cost effective solution for most water and chilled applications.
Features
  • Bubble tight design DN 15 to 100
  • Snap mechanical connection to gether with AMV(E) 335, AMV(E) 435
  • Dedicated 2- and 3-port valve
  • Suitable for diverting applications (3-port)

Models matching criteria: 14
  • Size - DN 15
  • Flow Rate - 1 m³/hour
100+ In Stock
$928.00 CAD
Does not ship to OH, United States
  • Size - DN 32
  • Flow Rate - 16 m³/hour
100+ In Stock
$1,335.00 CAD
Does not ship to OH, United States
  • Size - DN 20
  • Flow Rate - 6.3 m³/hour
50+ In Stock
$1,223.00 CAD
Does not ship to OH, United States
  • Size - DN 15
  • Flow Rate - 1.6 m³/hour
50+ In Stock
$1,495.00 CAD
Does not ship to OH, United States
  • Size - DN 25
  • Flow Rate - 10 m³/hour
50+ In Stock
$1,097.00 CAD
Does not ship to OH, United States
  • Size - DN 15
  • Flow Rate - 4 m³/hour
50+ In Stock
$1,314.00 CAD
Does not ship to OH, United States
  • Size - DN 15
  • Flow Rate - 2.5 m³/hour
50+ In Stock
$2,544.00 CAD
Does not ship to OH, United States
  • Size - DN 100
  • Flow Rate - 145 m³/hour
25+ In Stock
$1,707.00 CAD
Does not ship to OH, United States
  • Size - DN 15
25+ In Stock
$1,682.00 CAD
Does not ship to OH, United States
  • Size - DN 15
  • Flow Rate - 0.63 m³/hour
24 In Stock
$1,435.00 CAD
Does not ship to OH, United States
  • Size - DN 40
  • Flow Rate - 25 m³/hour
21 In Stock
$903.00 CAD
Does not ship to OH, United States
  • Size - DN 65
  • Flow Rate - 63 m³/hour
20 In Stock
$874.00 CAD
Does not ship to OH, United States
  • Size - DN 80
  • Flow Rate - 100 m³/hour
16 In Stock
$634.00 CAD
Does not ship to OH, United States
  • Size - DN 50
  • Flow Rate - 40 m³/hour
1 In Stock
$113.00 CAD
Does not ship to OH, United States

Specifications

Brand

Approvals & Certifications

  • PED 97/23/EC

Cone Material

  • Brass - Valve Cone
  • Valve Cone: Red Bronze CuSn5Zn5Pb5 (Rg 5) at DN 100

Connection Style

  • Flange PN 6 According to EN 1092-2

Control Functions Characteristics

  • Lin: Port B-AB
  • Log: Port A-AB

Enclosure, Body Material

  • Grey Cast Iron EN-GJL-250 (GG-25) - Valve

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - PN 6

Flange Size - 1-1/4” (DN 32)

  • 1-1/4” (DN 32) - PN 6

Flange Size - 1” (DN 25)

  • 1” (DN 25) - PN 6

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - PN 6

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - PN 6

Flange Size - 2” (DN 50)

  • 2” (DN 50) - PN 6

Flange Size - 3” (DN 80)

  • 3” (DN 80) - PN 6

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - PN 6

Flange Size - 4” (DN 100)

  • 4” (DN 100) - PN 6

Flow Rate

  • 0.63 to 145 m³/hour (Kvs)

Maximum System Pressure

  • psi: 14.5 (kPa: 100, bar: 1) - Max.
  • psi: 58.02 (kPa: 400, bar: 4) - Max.

Media

  • Circulation Water, Glycolic Water up to 50 %

Nominal Pressure

  • psi: 87 (kPa: 600, bar: 6)

Process Temperature

  • -10° to 120° C (14° to 248° F)

Ratio

  • 100:1 - Control Range

Seat / Seal Material

  • Stuffing Box Sealing: EPDM

Stem Material

  • Stainless Steel

Temperature Range

  • Maximum
