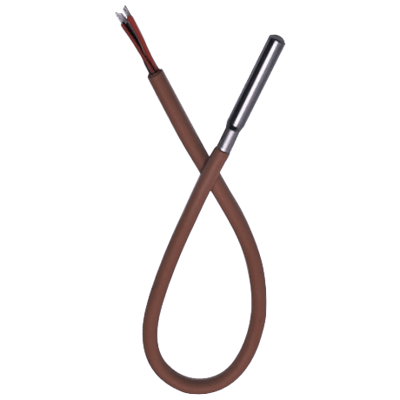

MBT 153 Temperature Sensor

Brand: Danfoss

The MBT 153 is an universal cable temperature sensor that can be used for controlling cooling water and ventilation systems within general industry applications.

This temperature sensor is based on a standardized Pt 100 or Pt 1000 element, which gives a reliable and accurate measurement.

On request the MBT 153 can also be delivered with NTC / PTC elements. The sensor is based on a stainless steel housing with a cable, which makes the sensor extremely flexible.

The MBT 153 can be combined with a sensor pocket, type MBT 120, to protect the silicone cable from the media. The sensor combined with the sensor pocket is named MBT 5253.

The MBT 153 has a PVC or silicone cable as standard but it can be delivered with teflon cable on request.
Features
  • For temperature measurement where reliable, robust and accurate equipment is required
  • Temperature range -50° to 200° C
  • Short response times
  • Pt 100 or Pt 1000 resistance element
  • 2- or 4-wire connection
  • MBT 120 sensor pocket available

Specifications

Brand

Ambient Temperature Range

  • 0° to 200° C (32° to 392° F)

Applications

  • Cooling Water System
  • Ventilation Systems

Cable Length

  • 11.48 feet (3.5 metres)
  • 18 feet (5.5 metres)
  • 27.88 feet (8.5 metres)

Cable Material

  • PVC (2 x 0.25 mm²)
  • Silicone [2 x 0.25 mm² (2-Wire), 4 x 0.14 mm² (4-Wire)]
  • Teflon

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP67

Materials of Construction

  • 316Ti Stainless Steel - Material in Contact with Medium

Response Time

  • 2 to 10 seconds for Water 0.2 m/sec
  • 28 to 107 seconds for Air 1 m/sec

Sensor / Probe Connection

  • 2-Wire
  • 3-Wire
  • 4-Wire

Sensor / Probe Type

  • Pt100
  • Pt1000

Shock

  • 100 G, 6 milliseconds

Temperature Range

  • -50° to 100° C (-58° to 212° F) - PVC Cable
  • -50° to 200° C (-58° to 392° F) - Silicone & Teflon Cable

Tolerance

  • EN 60751 Class B: ± (0.3 + 0.005 x T), T = Temperature of Medium, Numerical Value

Vibration

  • 4 G Sine Function 5 to 200 Hz, Measured According to IEC 60068-2-6

  • Cooling Water System
  • Ventilation Systems
