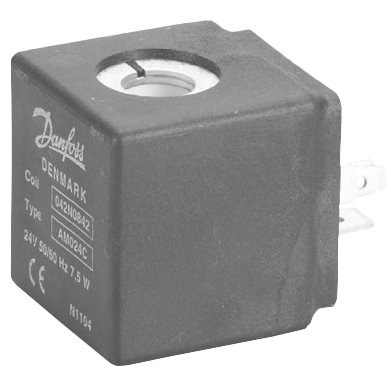

AM Solenoid Coil
Brand: DanfossDanfoss solenoid valves and coils are usually ordered separately to allow maximum flexibility, enabling you to select a valve and coil combination to best suit your needs.
The Danfoss coil program consists of both the easy-to-handle Clip-On system and traditional coils with threaded fastener.
Danfoss offer a wide range of application specific coils for e.g. steam or hazardous areas. The coils are available with approvals such as EN60730-1, EEx/ATEX and UL.
Features- Cable plug enclosure:
- IP00 version with DIN 43650 A spade connectors
- IP20 version with protective cap
- IP65 version with cable plug
- In accordance with:
- RoHS Directive 2011/65/EU
- Low Voltage Directive 2014/35/EU
- EN60730-1
- EN60730-2-8
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 6
- Model - 042N0843
100+ In Stock
$1,758.00 CAD
Does not ship to OH, United States
- Model - 042N0841
50+ In Stock
$1,605.00 CAD
Does not ship to OH, United States
- Model - 042N0842
50+ In Stock
$913.00 CAD
Does not ship to OH, United States
- Model - 042N0845
50+ In Stock
$501.00 CAD
Does not ship to OH, United States
- Model - 042N0840
25+ In Stock
$1,118.00 CAD
Does not ship to OH, United States
- Model - 042N0848
18 In Stock
$1,484.00 CAD
Does not ship to OH, United States
Specifications
Brand
Ambient Temperature Range
- -40° to 50° C (-40° to 122° F)
Approvals & Certifications
- ATEX
- CE
- Low Voltage Directive (LVD) 2014/35/EU, EN 60730-1, EN 60730-2-8
- RoHS Directive 2011/65/EU
- UL (C,US)
- VDE 0580
Coil Voltage
- ± 10 %
Consumption
- 11-18 VA - Power Consumption
- 22.5 VA for AC Coils - Power Consumption, Cut In
- 5.5-9.5 W - Power Consumption
Electrical Connectors
- 3-Core Cable
- Cable Plugs
- Conduit Hub
- DIN 43650-A Spade Connectors
- Industrial Plug
- Junction Box
- Terminal Box
Environmental Protection
- IP00 with Spade Connector
- IP20
- IP65 with Cable Plug
Frequency
- 50/60 Hz
Supply Voltage
- 12-240 V
Winding Insulation
- Class H According to IEC 85
