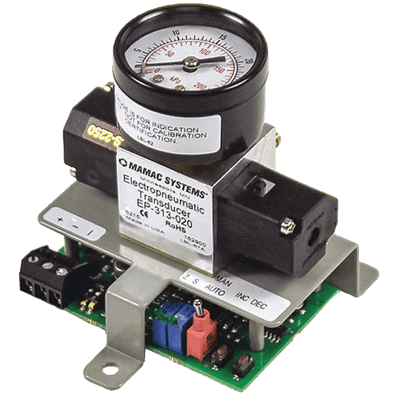

EP-311/313 ElectroPneumatic Transducer
Brand: Mamac
The EP-311/313 incorporate quiet low wattage poppet valves and a Pressure Sensor to measure and adjust the branch line pressure proportional to the input.
This unit has no air consumption and is immune to mounting orientation or supply line pressure fluctuations.
The EP-313 incorporates a manual override switch and, in the manual mode, the pressure can be increased or decreased with two push button switches.
This feature is most desirable for check out/commissioning and manual operation in case of controller failure.
Universal 24 Vac/24 Vdc supply voltage and field selectable 4-20 mA, 0-5 Vdc, or 0-10 Vdc inputs ensures single unit compatibility to most of the systems.
Unique steel chassis design substantially reduces the overall size of the unit and, at the same time, provides for ease of installation in a control panel directly or with a snap track.
A precision gauge is provided for the branch line pressure.
Rugged aluminum manifold, brass barb fittings, floating poppet solenoid valves, silicon pressure sensor, high performance electronics.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 4
- Manual Override - With
- Pressure Range - psig: 3 to 15 (bar: 0.2 to 1, kPa: 20 to 100)
100+ In Stock
$2,527.00 CAD
Does not ship to OH, United States
- Manual Override - Without
- Pressure Range - psig: 0 to 20 (bar: 0 to 1.5, kPa: 0 to 150)
50+ In Stock
$1,740.00 CAD
Does not ship to OH, United States
- Manual Override - Without
- Pressure Range - psig: 3 to 15 (bar: 0.2 to 1, kPa: 20 to 100)
50+ In Stock
$2,187.00 CAD
Does not ship to OH, United States
- Manual Override - With
- Pressure Range - psig: 0 to 20 (bar: 0 to 1.5, kPa: 0 to 150)
25+ In Stock
$777.00 CAD
Does not ship to OH, United States
Specifications
Brand
Accuracy
- ± 1 % of Full Scale
Approvals & Certifications
- CE
- EMC: BS EN 55022, BS EN 55024, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
- RoHS
Compensated Temperature
- -4° to 65° C (25° to 149° F)
Configuration
- Push Button
Current
- 150 mA
Differential Pressure
- psig: 0.1 (kPa: 0.7, Mbar: 7) - Supply to Branch
Enclosure Finish
- Baked on Enamel - PMS2 GR88B
Enclosure, Body Material
- 18 Gauge Cold Rolled Steel Chassis
Humidity
- 10 to 90 % Relative Humidity, Non-Condensing
Input
- 0-10 Vdc
- 0-5 Vdc
- 4-20 mA
Input Impedance
- 10 kiloohms (0-5 / 0-10 Vdc)
- 301 ohms (4-20 mA)
Media
- Any Inert Gas
- Clean Dry Air
Pressure Range
- bar: 0 to 1.379
- kPa: 0 to 137.9
- psi: 0 to 20
Pressure Type
- Differential
Supply Pressure - Maximum
- psig: 40 (kPa: 275.8, bar: 2.75)
Supply Voltage
- 18-28 Vac
- 18-28 Vdc
- 24 Vac/dc
Temperature Coefficient
- ± 0.025 %/°F - Error
- 0.03 %/°C - Error
Termination
- Screw Terminal Block
Tube Connection
- 1/4” O.D. Tube Poly Tubing
