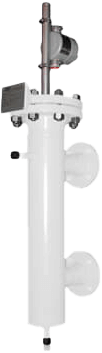

Images are representations only.

LS561/HSB/C0ESR13/A/X

Series: LS 500/510 Series Top Mount Float Level Switch Brand: ABB Group
Price
$1,359.00 CAD
Stock
100+ In Stock
Request Information

  • Switch Type - Displacer Switch
  • Process Connection - NPT
  • Pressure at Indicated Temperature - 1,000 psig (68.9 bar) at 100° F (37.7° C) /750 psig (51.7 bar) at 450° F (232° C)
  • Access Connection Material - Hastelloy B-3
  • Available Connection - FNPT Coupling Connected Via Extruded Outlet²
  • Access Connection Size, Type & Rating - Slip On Flange
  • Flange Type - Raised Face
  • Flange Size - 1"
  • Pressure Rating - 300#
  • Reed Switch - MS30
  • Insulation - No Insulation

Specifications

Brand

Process Temperature

  • Up to 1,000° F (538° C)

Process Pressure

  • Up to 4,500 psi (310 bar)

Chamber Material

  • Carbon Steel, 316 Stainless Steel, Duplex Stainless Steel, Hastelloy C-276, Hastelloy B-3, and Chrome Molly Steel

Certifications & Approvals

  • NACE MRO175 & MRO103
  • ATEX
  • FM
  • CSA
  • PED

Environmental Protection

  • NEMA 4X

Housing Material

  • Stainless Steel

Switch Type

  • Cam Action Switch
  • Reed Switch
  • Pneumatic Switch

Documentation

Data Sheets

Product Manuals

Brochure

Certifications

View Product Series
