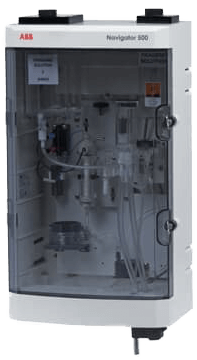

Images are representations only.

AHM550/A1W1S1A1 SC3CDM3

Series: Navigator AHM550 Hydrazine Analyzer Brand: ABB Group
Price
$906.00 CAD
Stock
100+ In Stock
Request Information

  • Measuring Range - Standard (0 to 1000 ppb)
  • Enclosure Type - Wall
  • Number of Streams - Single Stream
  • Sensor Type - Standard
  • Process Connection Type - 6 mm Fitting
  • Sample Measurement Option - None (Not Required)
  • Signal Cable Length - 10 m (Approx. 30 ft)
  • Test Certificate - Test Certificate
  • Documentation Language - Spanish

Specifications

Brand

Measurement Range

  • 0 to 1,000 ppb

Accuracy / Maximum Measured Error

  • ± 3 % of Reading or ± 1 ppb, whichever is greater

Repeatability

  • ± 3 % of Reading or ± 1 ppb, whichever is greater

Response Time

  • < 2 minutes for a 90 % step change

Resolution

  • 0.1 ppb

Calibration

  • Automatic

Temperature Compensation

  • 5° to 55° C (41° to 131° F) automatic using a Pt1000

Sample Temperature

  • 5° to 55° C (41° to 131° F)

Sample Pressure

  • 1.5 bar Gauge (21.7 psi) Max.

Flow Rate

  • Sample: 100 to 400 mL/min

Operating Temperature

  • 0° to 55° C (32° to 131° F)

Humidity

  • Up to 95 % RH, Non-Condensing

Storage Temperature

  • 0° to 55° C (32° to 131° F) with Sensor
  • -20° to 70° C (-4° to 158° F) without Sensor

Certifications & Approvals

  • cULus Listed
  • CE
  • EMC
  • LV Directives

Environmental Protection

  • IP54

Power Supply

  • 24 Vc Max.

Power Consumption

  • 8 W Max.

Documentation

Brochure

Catalog

Manual
