Advance Optima AO2000 Series Continuous Gas Analyzer

Brand: ABB Group

The Advance Optima process gas analyzers have a modular design that offers a long-term security in your investment.

Analyzer modules can be freely combined into tailor-made solutions and upgraded or extended with new features at any time.

Remote modules are easily attached and centrally operated.

The AO2000 series provides the widest range of analyzer modules. Up to four modules can be combined into tailor-made solutions.

All analyzers use high-performance measurement technology and simplified calibration that doesn't require test gas bottles.
Features
  • NDIR and UV Photometers
  • In-Situ Laser Module
  • Oxygen Analyzers
  • Trace Oxygen Analyzer
  • Thermal Conductivity Analyzers
  • FID Analyzers

Models matching criteria: 2
ABB 19-inch Rack Housing
25+ In Stock
$152.00 CAD
Does not ship to OH, United States
ABB Wall-Mount Housing
1 In Stock
$2,261.00 CAD
Does not ship to OH, United States

Specifications

Brand

Housing Protection

  • IP20
  • IP54 with Connection box
  • IP65 without Power Supply/display/control unit

Power Supply

  • 100-240 Vac, -15 %, +10 %, Max. 2.2 A ± 3 Hz

Size

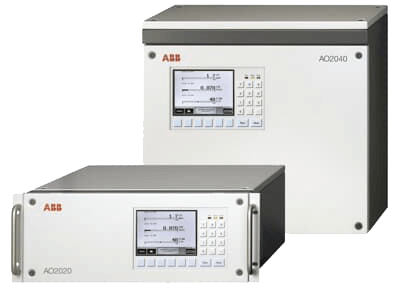

  • AO2020: 483 mm W x 412 (597) mm D x 177 mm H, values with purge box in backets
  • AO2040: 444 mm W x 199 mm D x 412 (597) mm H

Mounting Type

  • AO2020 Rack Mounted
  • AO2040 Wall Mounted

Display

  • Backlit Graphics Display, 320 x 240-pixel resolution

Resolution

  • Better than 0.2 % of Span

Material of Construction

  • Keypad sheet: Polyester
  • Module Rear Panel: Aluminum
  • Housing: Stainless Steel 1.4016

Working Pressure

  • 600 to 1,250 hPa

Electrical Connection

  • System bus: 3-Pin socket Connector
  • Ethernet: two 8-Pin RJ45 plugs
  • Power Supply: 3-Pin grounded instrument Connector, 4-Pin Male Connector

Operating Temperature

  • -20° to 55° C

Storage Temperature

  • -25° to 65° C, Oxygen Sensor: -20° to 60° C

Relative Humidity

  • < 75 %, No Condensation

Power Consumption

  • Maximum 187 VA

Output Voltage

  • DC 24 V ± 3 %

Input Voltage

  • DC 24 V ± 5 %

Interfaces

  • System bus
  • Ethernet

Certifications & Approvals

  • GOST TR CU
  • CSA
  • CE conformity
  • NEPSI
  • KCs
