Images are representations only.

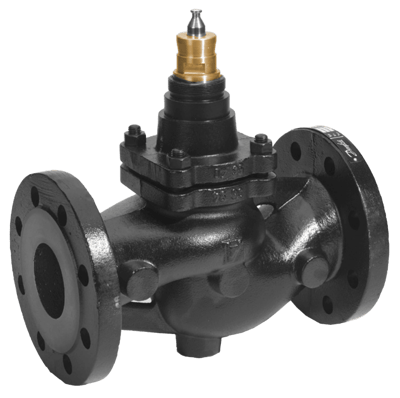

VFS 2 2-Way Valve
Brand: DanfossVFS 2 valves are a range of 2 port flanged valves for chilled water, LPHW, MPHW, HPHW (low, medium or high pressure hot water) and steam applications.
The valve is designed to be combined with following actuators:
- DN 15-50: AMV(E) 25 (SU/SD), AMV(E) 35, AMV(E) 56 (with clutch 065Z7551)
- DN 65-100: AMV(E) 55, AMV(E) 56, AMV(E) 85, AMV(E) 86, AMV (E) 65x
- Logarithmic characteristic
- Control range 30:1 / 50:1 / 100:1
- Suitable for steam applications
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 15
- Size - DN 15
- Flow Rate - 2.5 m³/hour
100+ In Stock
$1,841.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 1 m³/hour
50+ In Stock
$1,010.00 CAD
Does not ship to OH, United States
- Size - DN 32
- Flow Rate - 16 m³/hour
50+ In Stock
$1,039.00 CAD
Does not ship to OH, United States
- Size - DN 25
- Flow Rate - 10 m³/hour
50+ In Stock
$1,882.00 CAD
Does not ship to OH, United States
- Size - DN 15
50+ In Stock
$1,963.00 CAD
Does not ship to OH, United States
- Size - DN 65
- Flow Rate - 63 m³/hour
50+ In Stock
$1,954.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 0.63 m³/hour
50+ In Stock
$1,377.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 0.4 m³/hour
50+ In Stock
$1,856.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 1.6 m³/hour
50+ In Stock
$2,277.00 CAD
Does not ship to OH, United States
- Size - DN 80
- Flow Rate - 100 m³/hour
25+ In Stock
$1,491.00 CAD
Does not ship to OH, United States
- Size - DN 100
- Flow Rate - 145 m³/hour
25+ In Stock
$190.00 CAD
Does not ship to OH, United States
- Size - DN 20
- Flow Rate - 6.3 m³/hour
21 In Stock
$847.00 CAD
Does not ship to OH, United States
- Size - DN 50
- Flow Rate - 40 m³/hour
18 In Stock
$820.00 CAD
Does not ship to OH, United States
- Size - DN 40
- Flow Rate - 25 m³/hour
16 In Stock
$1,199.00 CAD
Does not ship to OH, United States
- Size - DN 15
- Flow Rate - 4 m³/hour
9 In Stock
$1,468.00 CAD
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- IEC 534
- PED 97/23/EEC
Cone Material
- Stainless Steel
Control Functions Characteristics
- Log
Cover Material
- Ductile Iron EN-GJS-400-18-LT (GGG-40.3), EN-GJS-400-15 (GGG-40)
Enclosure, Body Material
- Ductile Iron EN-GJS-400-18-LT (GGG-40.3), EN-GJS-400-15 (GGG-40)
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - PN 25
Flange Size - 1-1/4” (DN 32)
- 1-1/4” (DN 32) - PN 25
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 25
Flange Size - 1/2” (DN 15)
- 1/2” (DN 15) - PN 25
Flange Size - 2-1/2” (DN 65)
- 2-1/2” (DN 65) - PN 25
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 25
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 25
Flange Size - 3/4” (DN 20)
- 3/4” (DN 20) - PN 25
Flange Size - 4” (DN 100)
- 4” (DN 100) - PN 25
Flow Rate
- 0.4 to 145 m³/hour
Measuring Range
- pH: 7 to 10
Media
- Circulation Water
- Glycolic Water up to 50 %
- Steam, Max.
Nominal Pressure
- psi: 362.6 (kPa: 2,500, bar: 25)
Process Temperature
- -10° to 200° C (15° to 392° F)
Ratio
- Minimum 100:1 - Control Range for 6.3 to 145 Kvs (m³/hour)
- Minimum 30:1 - Control Range for 0.4 & 0.63 Kvs (m³/hour)
- Minimum 50:1 - Control Range for 1 to 4 Kvs (m³/hour)
Ring Material
- PTFE
Seat / Seal Material
- Seat: Stainless Steel
Spindle Material
- Stainless Steel
