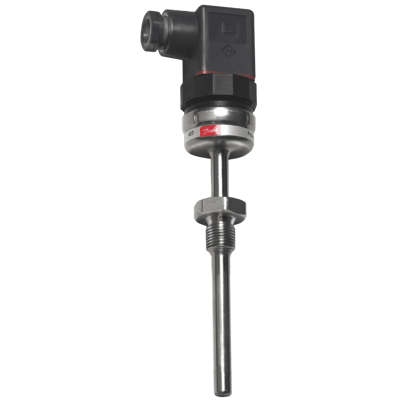

MBT 5560 Temperature Sensor

Brand: Danfoss

With MBT 5560 we have combined the technology of our standard temperature sensors and the electrical connections from our MBS pressure transmitters with a new developed electronics which has resulted in a compact temperature sensor with a built-in transmitter.

The MBT 5560 is designed for use in harsh industrial environments where reliable, robust and accurate equipment is required.

Available with a wide selection of process and electrical connections. Can be delivered with a 33 mm extension length which makes it possible to measure temperatures up to 200° C without damaging the built-in electronics.
Features
  • Designed for use in harsh industrial environments where reliable, robust and accurate equipment is required
  • All metal enclosure parts made of stainless steel (AISI 316)
  • Output signals: 4-20 mA or Ratiometric 10% to 90%
  • A wide selection of process and electrical connections
  • Ultra compact design
  • Temperature range -50° to 200° C
  • Sensor pockets available for applications where emptying the system is not an option
  • Based on Pt 1000 technology

Specifications

Brand

Accuracy

  • < ± 0.05 % of Full Scale/10 V - Supply Voltage Dependency
  • < ± 0.5 % of Full Scale - Typical
  • < ± 1 % of Full Scale, Max.

Approvals & Certifications

  • ABS
  • BV
  • CCS
  • DNV
  • EMC - Emmision (EN 61000-6-3), Immunity (EN 61000-6-2)
  • GL
  • KRS
  • LRS
  • NKK
  • RINA

BSP Connection

  • G 1/2” A Male
  • G 1/4” A Male
  • G 3/8” A Male

Cable Length

  • 6.56 feet (2 metres) Screened Cable

Consumption

  • < 4 mA at 5 Vdc - Supply Current Consumption

Current

  • 30 mA - Current Limitation

Electrical Connectors

  • AMP Econoseal, J Series, Male
  • Flying Leads
  • M12 x 1
  • PG9
  • Screened Cable

Electrical Protection

  • Short Circuit Protected - Nominal Output Signal

Environmental Protection

  • IP65
  • IP67

Insulation Resistance

  • > 100 megaohms at 100 Vdc

Load Resistance

  • > 5 kiloohms at 5 Vdc - Ratiometric 10 to 90 % of Supply Voltage

Materials of Construction

  • Glass-Filled Polyamid, PA 6.6
  • Polyurethane (PUR)

NPT Connection

  • 1/2”-14 Male NPT

Output

  • 10 to 90 % (3-Wire) Ratiometric of Supply Voltage - Nominal Output Signal
  • 4-20 mA, 2-Wire - Nominal Output Signal (Short-Circuit Protected)

Output Impedence

  • < 25 ohms

Pressure Range

  • psi: 1,450 (kPa: 10,000, bar: 100) - Max.

Process Temperature

  • -50° to 200° C (-58° to 392° F) - Max.

Response Time

  • 10 to 35 seconds - Water
  • 95 to 310 seconds - Air

Shock

  • 500 G at 1 millisecond IEC 60068-2-27 -Shock Resistance
  • Free Fall IEC 60068-2-32 -Shock Resistance

Span - Minimum

  • 25° C (77° F)

Supply Voltage

  • 10-30 Vdc - Polarity Protected
  • Ratiometric 10 to 90 % 4.75-8 Vdc - Polarity Protected
  • Ratiometric 10 to 90 % 5 Vdc (Nominal) - Polarity Protected

Temperature Range

  • -40° to 85° C (-40° to 185° F) - Temperature on Electronics
  • -50° to 200° C (-58° to 392° F)
  • -50° to 85° C (-58° to 185° F) - Transport Temperature

Vibration

  • 4 G at 25 Hz to 2 kHz IEC 60068-2-6
  • 7.5 G at 5 Hz to 1 kHz IEC 600868-2-34, IEC 60068-2-36
  • Sinusoidal 15.9 mm-pp, 5 to 25 Hz

Wetted Materials

  • 316L Stainless Steel, 1.4401
  • 316Ti Stainless Steel, 1.4542
