Images are representations only.

AW63451001021

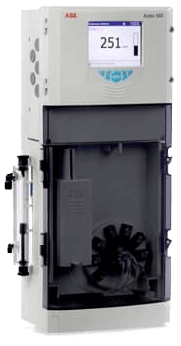

Series: Aztec AW634 Low Range Manganese Analyzer Brand: ABB Group
Price
$1,257.00 CAD
Stock
100+ In Stock
Request Information

  • Range - 0 to 0.100 ppm
  • Number of Streams - Measuring 1 Stream
  • Communication - None
  • Enclosure - Standard
  • Power Supply - 18 to 36 Vdc
  • Manual - French
  • Certification - Certificate of Calibration

Specifications

Brand

Measurement Range

  • 0 to 0.1 ppm Mn (0 to 3 mg/L)

Accuracy / Maximum Measured Error

  • ± 0.005 ppm for 0.000 to 0.050 ppm
  • ± 0.010 ppm for 0.050 to 0.100 ppm

Repeatability

  • ± 5 % of Reading or ± 0.001 ppm, whichever is greater

Resolution

  • 0.001 ppm or 1 ppb

Calibration

  • 2-Point, Automatic Calibration

Operating Temperature

  • 5° to 35° C (41° to 93° F)

Sample Temperature

  • 1° to 35° C (32° to 93° F)

Flow Rate

  • Sample: Continuous 200 to 500 mL/min

Sample Pressure

  • 5 psi Max.

Humidity

  • Up to 95 % Relative Humidity, Non-Condensing

Display

  • Color, TFT, LCD with built-in backlight and brightness Adjustment

Environmental Protection

  • IP 31

Communication

  • PROFIBUS DP V1.0

Certifications & Approvals

  • cULus
  • CE
  • EMC
  • LV Directives

Power Supply

  • 100-240 Vac Max. 50/60 Hz ± 10 %
  • 18-36 Vdc optional

Power Consumption

  • 75 W Max. - AC
  • 100 W Max. - DC

Material of Construction

  • Electronics Enclosure: 10 % Glass-loaded Polycarbonate
  • Main Enclosure: Noryl
  • Lower Tray: 20 % Glass-loaded Polypropylene
  • Door: Acrylic

Documentation

Brochure

Catalog

Certificate

Manual
